Face Terminals
Android face terminal

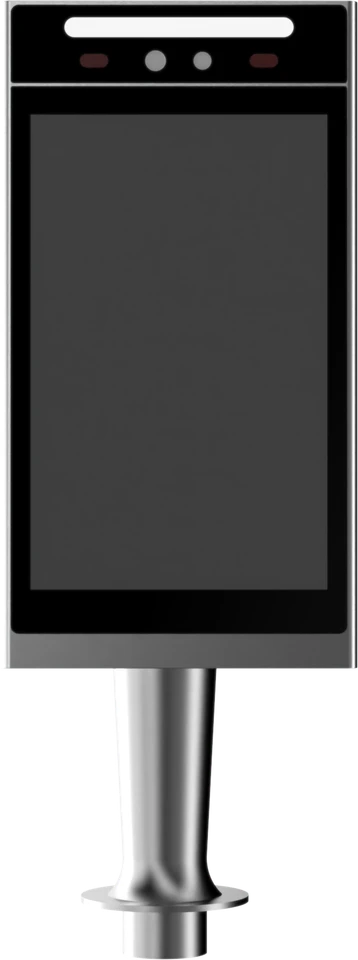

Build your device experience on an 8-inch touch terminal running Android 11. FCV5006 supports wall, pedestal and desktop arrangements with the appropriate mounting accessories.
THE FCV5006 EXPERIENCE
FCV5006 brings an Android 11 application to an 8-inch touch terminal. Use the selected wall, pedestal or desktop assembly to place the interaction where it fits the arrival sequence, then connect it to your existing services.
Explore the product manual
AT THE POINT OF INTERACTION
Choose the credential and application together. Functions depend on the selected modules, firmware and software.
Evaluate the supplied Android SDK with your application and selected credential modules. Check the device functions your workflow needs before finalising the hardware.
Choose face authentication for enrolled users. Plan enrolment, user permission and the way the application handles an unrecognised visitor.
Use the display for an instruction and a clear result. Your application decides whether to continue, ask for another credential or direct the visitor to assistance.
FROM IDENTITY TO ACTION
Ethernet, 2.4 GHz Wi-Fi, RS485 / RS232, USB and relay connections are described in the supplied manual. Use the Android SDK and firmware for the selected FCV5006 configuration; DejaOS references for Linux models do not describe this development path.
Presents a credential or follows the on-screen prompt.
Validates identity and applies the agreed access rules.
Receives the result, controls passage and records the event as configured.
Integration outline. The terminal, host software, controller and lock need a matching configuration; this is not a wiring diagram.
DESIGN AROUND THE PLACE
Example workflows to discuss with your integrator.
Place the screen on an appropriate pedestal and coordinate the application decision with the gate controller.
Use the selected desktop assembly for an attended workflow where a staff member can guide the interaction.

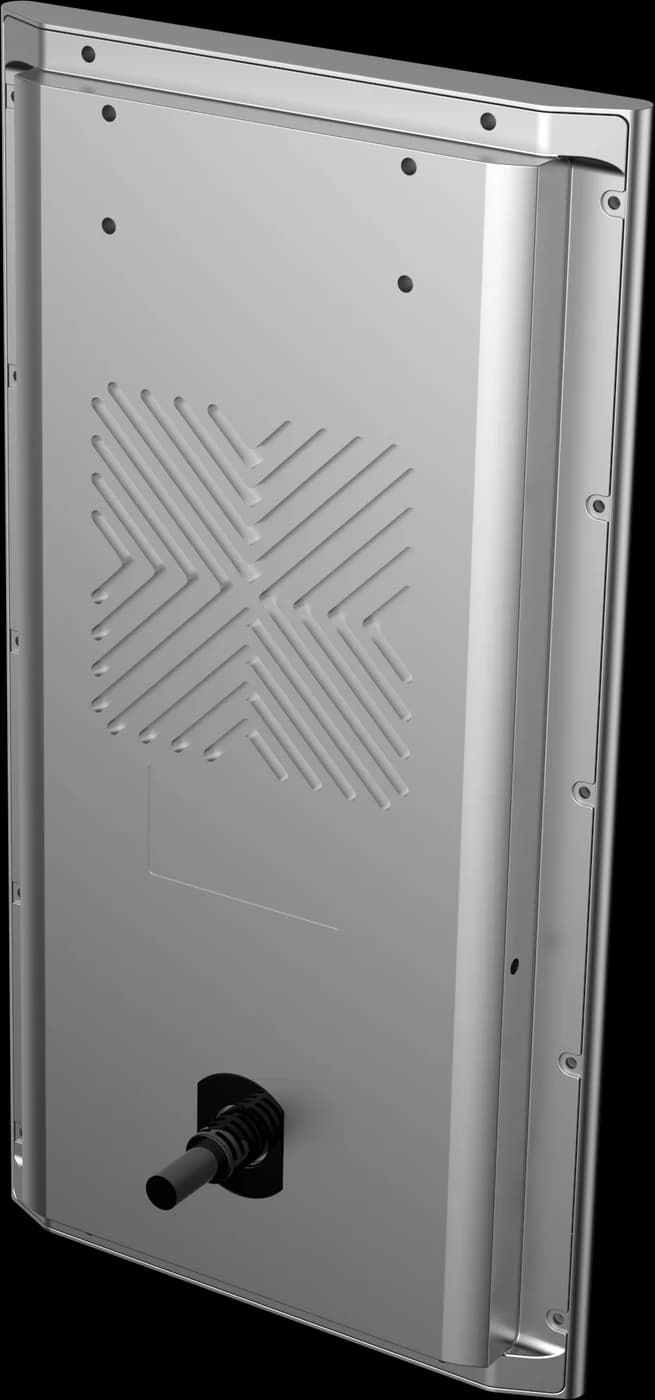

Select a wall position that keeps the camera approach, screen reach and rear cable route practical.
Technical details
Options vary by configuration. Use these details to plan your evaluation.
| Operating system | Android 11 |
|---|---|
| Display | 8-inch LCD touch screen |
| Processor | Quad-core 64-bit Cortex-A55 · up to 2.0 GHz |
| Memory | 2 GB; 4 GB is a configuration option |
| Connectivity | 10/100M Ethernet and 2.4 GHz Wi-Fi |
| Host interfaces | RS485 / RS232, USB and relay; confirm the selected interface configuration |
| Power input | 9–24 V DC · 12 V recommended |
Installation & connections
Product resources
Manual · English; some Chinese labels · PDF · 704 KB
The source manual uses VF206. Storage values conflict between its introduction and parameter table; confirm storage before ordering.
Strong backlight, direct sunlight, reflections and close-range lighting can reduce capture quality. Evaluate the terminal in its intended position and avoid pointing the camera directly toward a bright window or concentrated light source.
Use a clear, front-facing JPG without beauty filters, heavy makeup, sunglasses, a mask or other facial obstruction. File size and image dimensions can vary by software and model, so confirm the current import requirements before preparing a large enrollment set.
Confirm whether the selected configuration uses wired networking, Wi-Fi or another connection method, then collect the network and platform settings required by that system. A local network connection does not by itself prove that the device is connected to the management service, so verify both states separately.
