Face Terminals

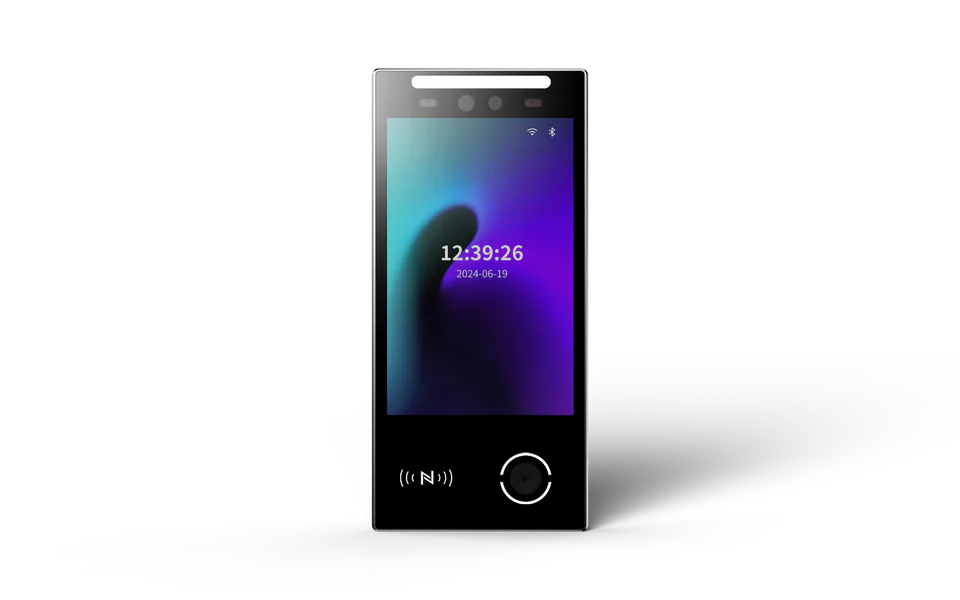

Android face terminal
An 8-inch Android 11 terminal for face authentication and on-device applications. Select memory, networking and mounting around the software you plan to deploy.
THE FCV4906 EXPERIENCE
Start with the application you want people to use. FCV4906 provides an Android 11 platform, an 8-inch touch display and access-oriented interfaces for teams building their own identity or entry experience.
Explore the product manual
AT THE POINT OF INTERACTION
Choose the credential and application together. Functions depend on the selected modules, firmware and software.
Review the application, permissions and hardware SDK against Android 11 on the sample. Confirm the way the app starts and recovers after a restart.
Choose face authentication for enrolled users. Plan enrolment, user permission and the way the application handles an unrecognised visitor.
Use the display for an instruction and a clear result. Your application decides whether to continue, ask for another credential or direct the visitor to assistance.
FROM IDENTITY TO ACTION
This model follows an Android SDK integration path. The manual describes Ethernet, 2.4 GHz Wi-Fi, RS485 / RS232, USB and relay connections, with optional 4G. Confirm which hardware functions the supplied SDK exposes to your application.
Presents a credential or follows the on-screen prompt.
Validates identity and applies the agreed access rules.
Receives the result, controls passage and records the event as configured.
Integration outline. The terminal, host software, controller and lock need a matching configuration; this is not a wiring diagram.
DESIGN AROUND THE PLACE
Example workflows to discuss with your integrator.

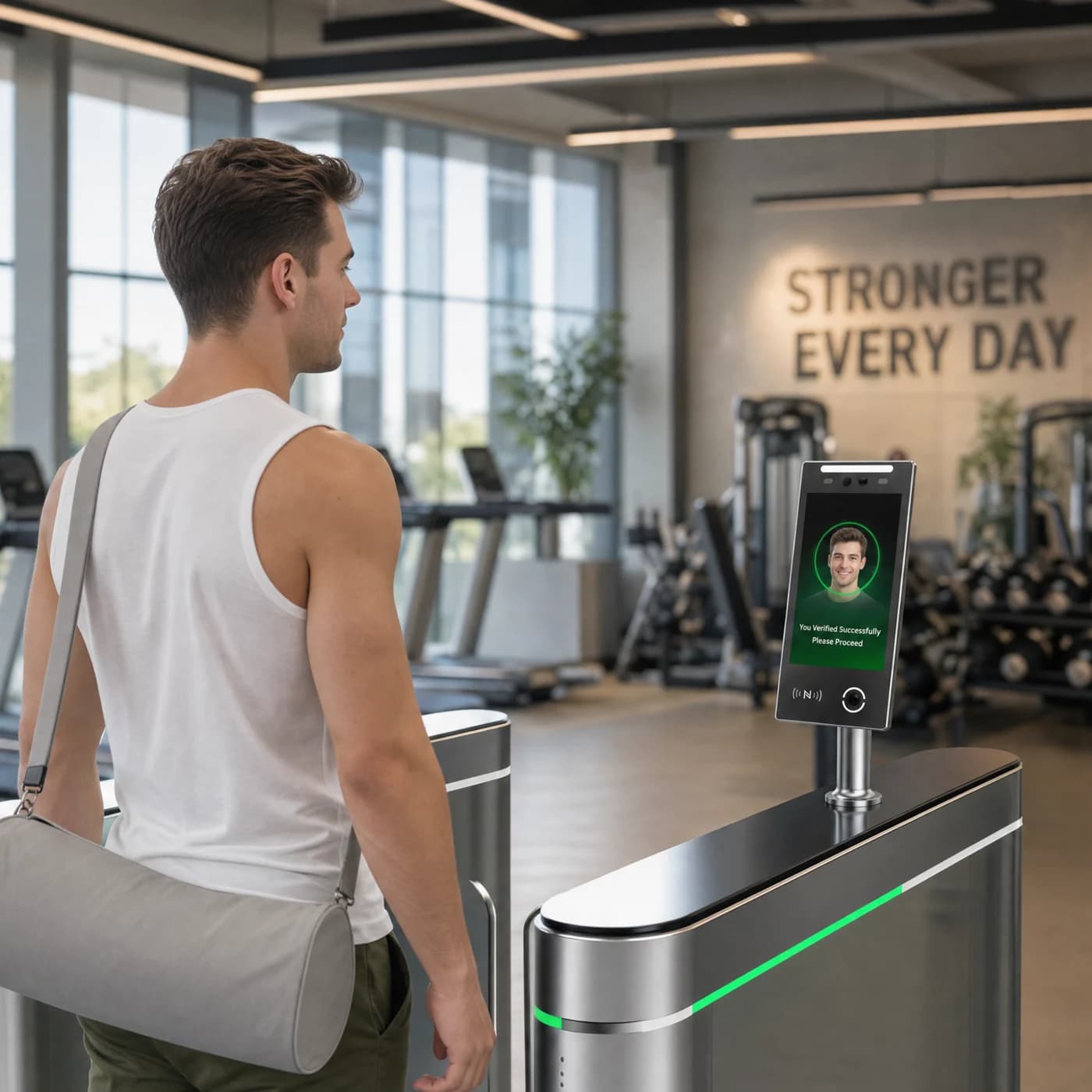

Bring the customer-facing part of a membership service to the touch screen, with the host checking account entitlement.
Evaluate your Android application with the selected camera and credential modules before planning a wider installation.
Use the wired interfaces to link the application result with the selected door or gate controller.
Technical details
Options vary by configuration. Use these details to plan your evaluation.
| Operating system | Android 11 |
|---|---|
| Display | 8-inch LCD touch screen |
| Processor | Quad-core 64-bit Cortex-A55 · up to 2.0 GHz |
| Memory | 2 GB / 4 GB configurations |
| Storage | 16 GB; 32 GB / 64 GB expansion options |
| Connectivity | Ethernet and 2.4 GHz Wi-Fi; 4G is optional |
| Host interfaces | RS485 / RS232, USB and relay; confirm the selected interface configuration |
| Power input | 9–24 V DC · 12 V recommended |
Installation & connections
Product resources
Manual · English · PDF · 520 KB
The source manual uses the VF106 hardware designation.
Strong backlight, direct sunlight, reflections and close-range lighting can reduce capture quality. Evaluate the terminal in its intended position and avoid pointing the camera directly toward a bright window or concentrated light source.
Use a clear, front-facing JPG without beauty filters, heavy makeup, sunglasses, a mask or other facial obstruction. File size and image dimensions can vary by software and model, so confirm the current import requirements before preparing a large enrollment set.
Confirm whether the selected configuration uses wired networking, Wi-Fi or another connection method, then collect the network and platform settings required by that system. A local network connection does not by itself prove that the device is connected to the management service, so verify both states separately.
Your next step
Tell us where it will be used, how it should connect and the quantity you need.
