Face Terminals
Face authentication terminal
A Linux touch terminal for identity and attendance applications. Pair its 7-inch display with the mounting, credential and network configuration your entrance needs.
THE FCV5003 EXPERIENCE

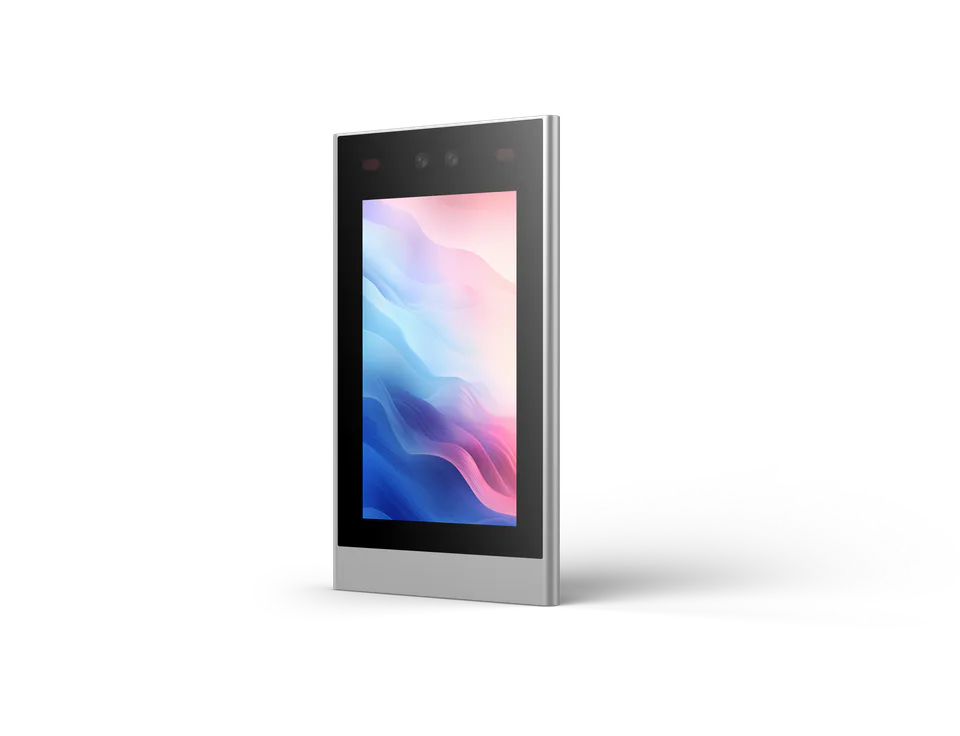

The 7-inch FCV5003 sits between compact entry terminals and larger portrait displays. Its touch interface gives an identity or attendance application space for guidance, with the mounting and connection options chosen around your site.
Explore the product manual
AT THE POINT OF INTERACTION
Choose the credential and application together. Functions depend on the selected modules, firmware and software.
Choose face authentication for enrolled users. Plan enrolment, user permission and the way the application handles an unrecognised visitor.
Select the supported card, QR or password workflow for the required credential modules and software. Confirm those options with the evaluation unit.
Use the display for an instruction and a clear result. Your application decides whether to continue, ask for another credential or direct the visitor to assistance.
FROM IDENTITY TO ACTION
Use Ethernet, RS485 or Wiegand 26/34 as appropriate to the host. DejaOS development is supported on matching configurations. Wi-Fi, 4G and PoE are separate choices, so review the network, power and firmware together.
Presents a credential or follows the on-screen prompt.
Validates identity and applies the agreed access rules.
Receives the result, controls passage and records the event as configured.
Integration outline. The terminal, host software, controller and lock need a matching configuration; this is not a wiring diagram.
DESIGN AROUND THE PLACE
Example workflows to discuss with your integrator.
Guide employees through a short identification task and connect the result to the attendance system.
Combine the selected credential option with screen prompts from your visitor application.

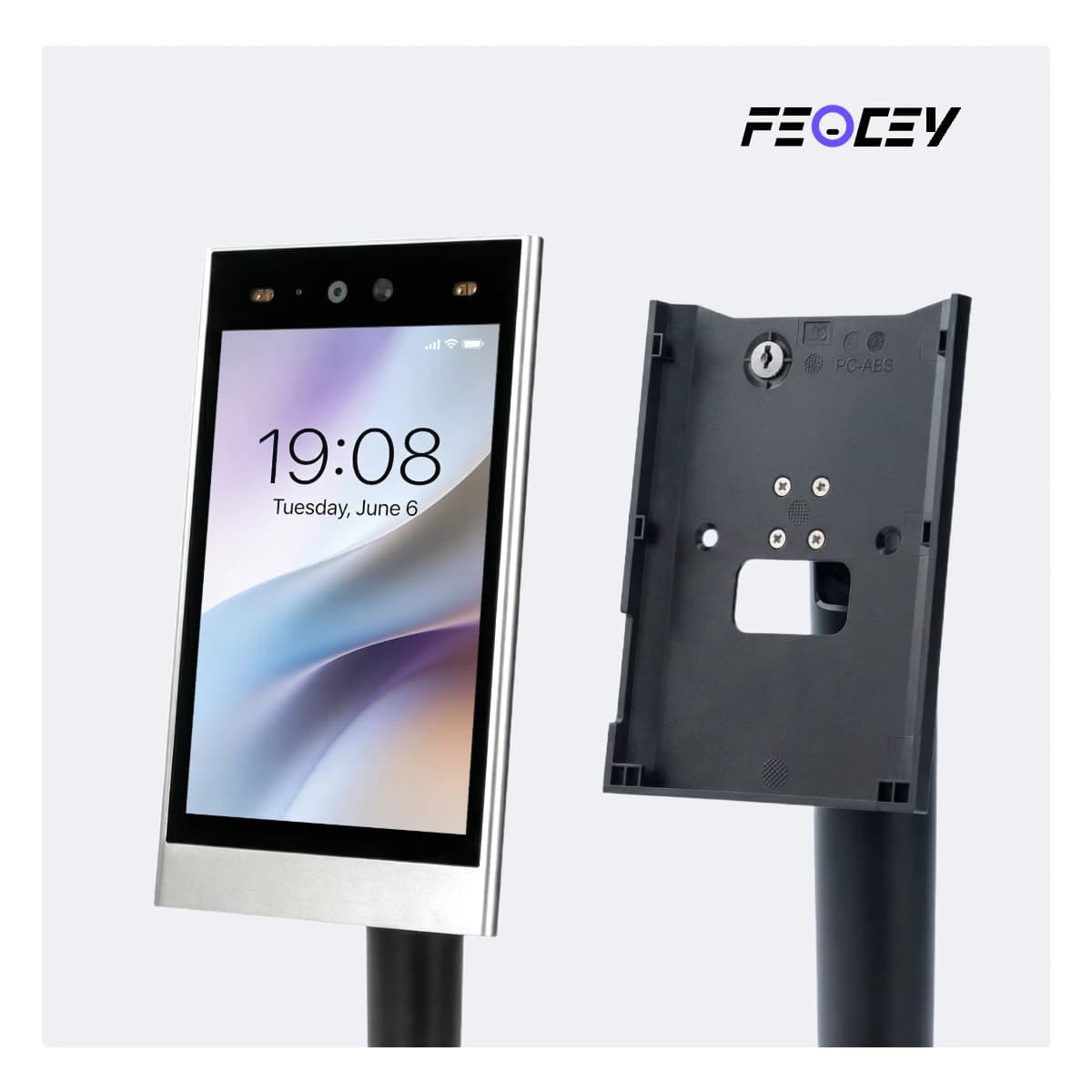

Place the terminal on the selected pedestal so the display is visible before the person reaches the gate.
Technical details
Options vary by configuration. Use these details to plan your evaluation.
| Operating system | Linux |
|---|---|
| Display | 7-inch touch screen · 1024 × 600 pixels |
| Processor | Dual-core ARM Cortex-A7 · 1 GHz |
| Storage | 8 GB |
| Interfaces | Ethernet, RS485 and Wiegand 26/34; wireless options depend on configuration |
| Power input | 9–24 V DC · 12 V recommended; PoE is an option |

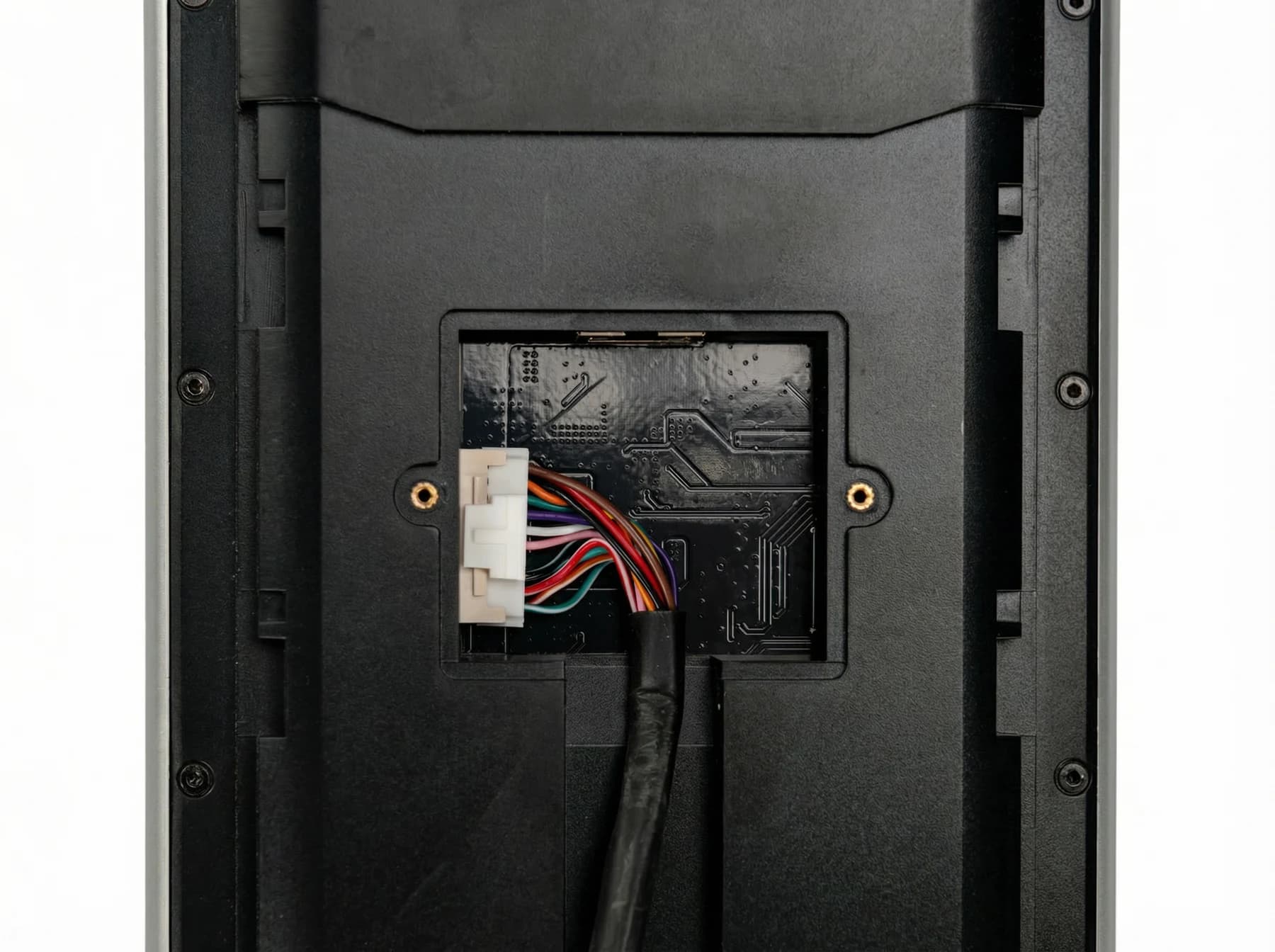

Installation & connections
Product resources
Manual · English; some Chinese screenshots · PDF · 2.9 MB
Strong backlight, direct sunlight, reflections and close-range lighting can reduce capture quality. Evaluate the terminal in its intended position and avoid pointing the camera directly toward a bright window or concentrated light source.
Use a clear, front-facing JPG without beauty filters, heavy makeup, sunglasses, a mask or other facial obstruction. File size and image dimensions can vary by software and model, so confirm the current import requirements before preparing a large enrollment set.
Confirm whether the selected configuration uses wired networking, Wi-Fi or another connection method, then collect the network and platform settings required by that system. A local network connection does not by itself prove that the device is connected to the management service, so verify both states separately.
Your next step
Tell us where it will be used, how it should connect and the quantity you need.
