Face Terminals
Face authentication terminal

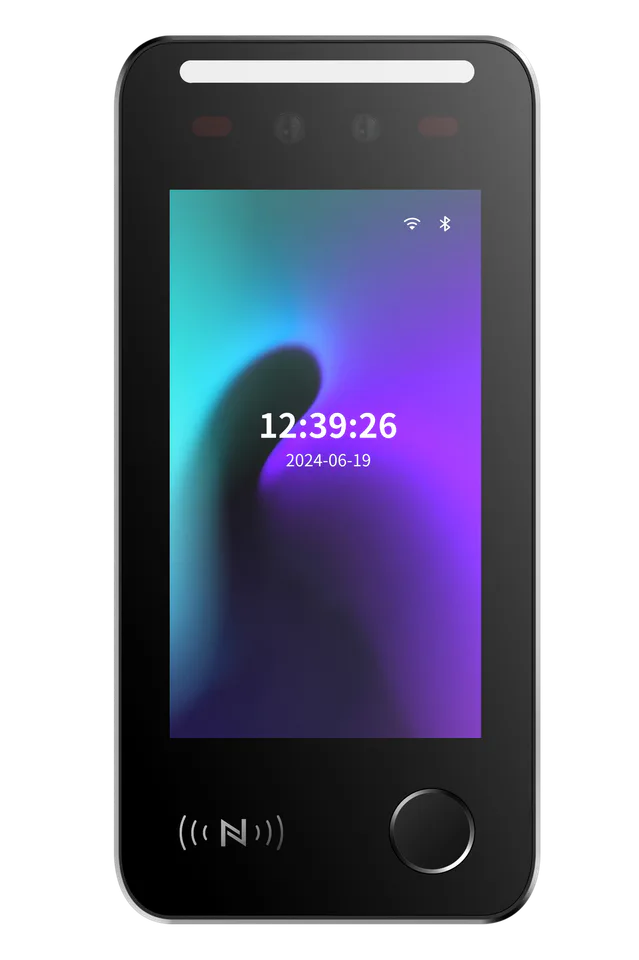

A 5.5-inch terminal for face, fingerprint, card and password access workflows. FCV4924 combines on-screen feedback with network and access-control connections.
THE FCV4924 EXPERIENCE
Bring the screen, camera and fingerprint area together without choosing an 8-inch panel. FCV4924 is a 5.5-inch terminal for projects that need several ways to identify a person at a shared access point.
Explore the product manual
AT THE POINT OF INTERACTION
Choose the credential and application together. Functions depend on the selected modules, firmware and software.
Choose face authentication for enrolled users. Plan enrolment, user permission and the way the application handles an unrecognised visitor.
Offer fingerprint identification as an additional credential. Agree how it works with face, card and password rules; availability and capacity depend on the selected configuration.
Use the display for an instruction and a clear result. Your application decides whether to continue, ask for another credential or direct the visitor to assistance.
FROM IDENTITY TO ACTION
The supplied manual names DejaOS (Linux), Ethernet, 2.4 GHz Wi-Fi, RS485, Wiegand 26/34, two inputs and a relay. Request the SDK and firmware combination for FCV4924 before planning device development; a reference for another model is not a substitute.
Presents a credential or follows the on-screen prompt.
Validates identity and applies the agreed access rules.
Receives the result, controls passage and records the event as configured.
Integration outline. The terminal, host software, controller and lock need a matching configuration; this is not a wiring diagram.
DESIGN AROUND THE PLACE
Example workflows to discuss with your integrator.
Use the face and fingerprint options where a smaller screen fits the entrance layout.
Present a short, clear interaction and send identity events to the attendance workflow selected for the project.
Review card and password options for users who need another credential method. Agree the rule for each user group.
Technical details
Options vary by configuration. Use these details to plan your evaluation.
| Operating system | DejaOS / Linux |
|---|---|
| Display | 5.5-inch LCD touch screen · 720 × 1280 pixels |
| Processor | Dual-core ARM Cortex-A7 · 1 GHz |
| Storage | 8 GB |
| Network | 10/100M Ethernet and 2.4 GHz Wi-Fi |
| Host interfaces | RS485, Wiegand 26/34, two IO inputs and relay |
| Power input | 9–24 V DC · 12 V recommended |
Installation & connections
Product resources
Manual · English · PDF · 1.6 MB
Strong backlight, direct sunlight, reflections and close-range lighting can reduce capture quality. Evaluate the terminal in its intended position and avoid pointing the camera directly toward a bright window or concentrated light source.
Use a clear, front-facing JPG without beauty filters, heavy makeup, sunglasses, a mask or other facial obstruction. File size and image dimensions can vary by software and model, so confirm the current import requirements before preparing a large enrollment set.
Confirm whether the selected configuration uses wired networking, Wi-Fi or another connection method, then collect the network and platform settings required by that system. A local network connection does not by itself prove that the device is connected to the management service, so verify both states separately.
Your next step
Tell us where it will be used, how it should connect and the quantity you need.
