Face Terminals
Face authentication terminal

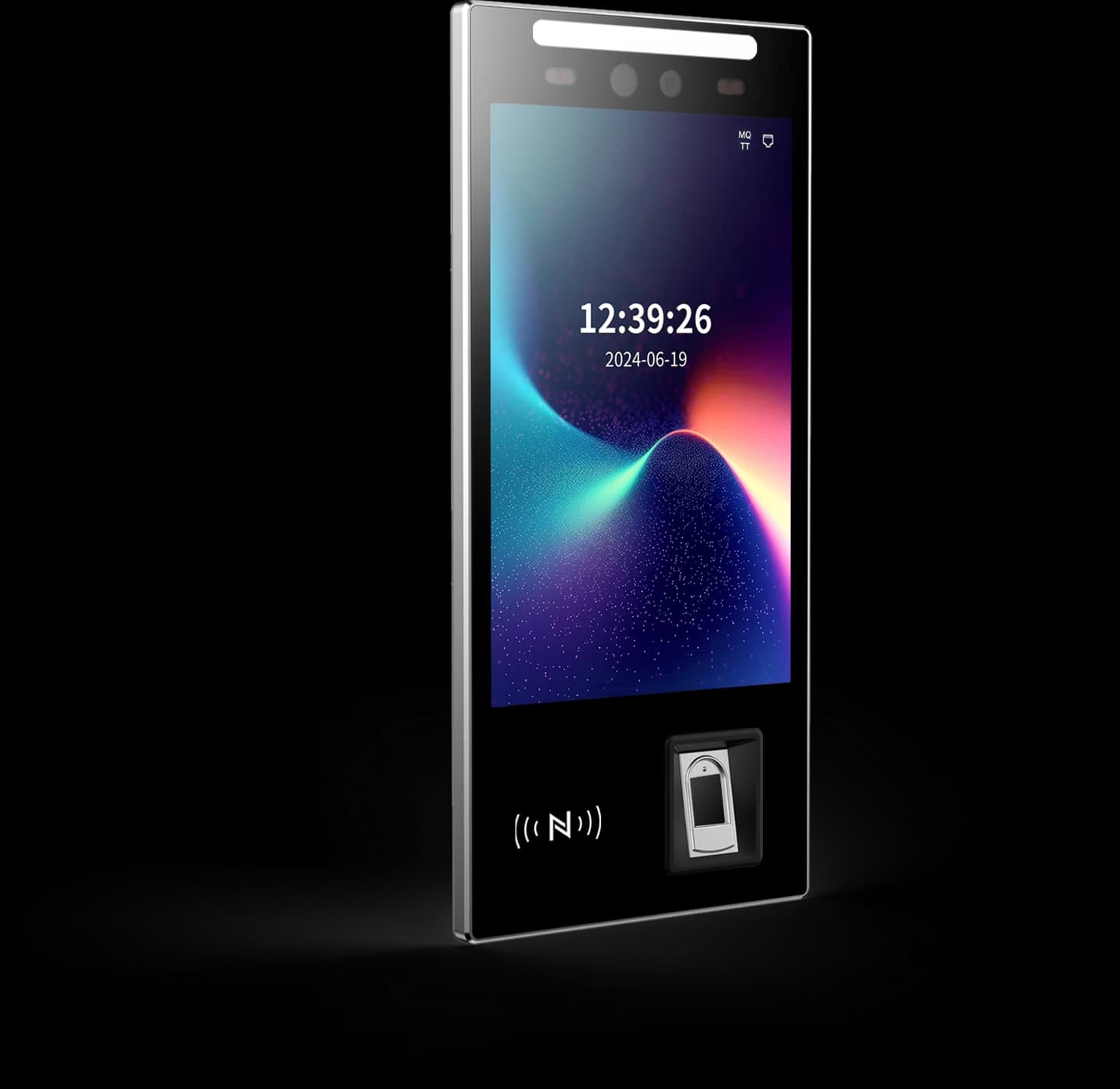

An 8-inch Linux terminal with face and fingerprint capability for access and attendance. Its display, credential readers and wired connections bring the interaction together at the entrance.
THE FCV4907 EXPERIENCE

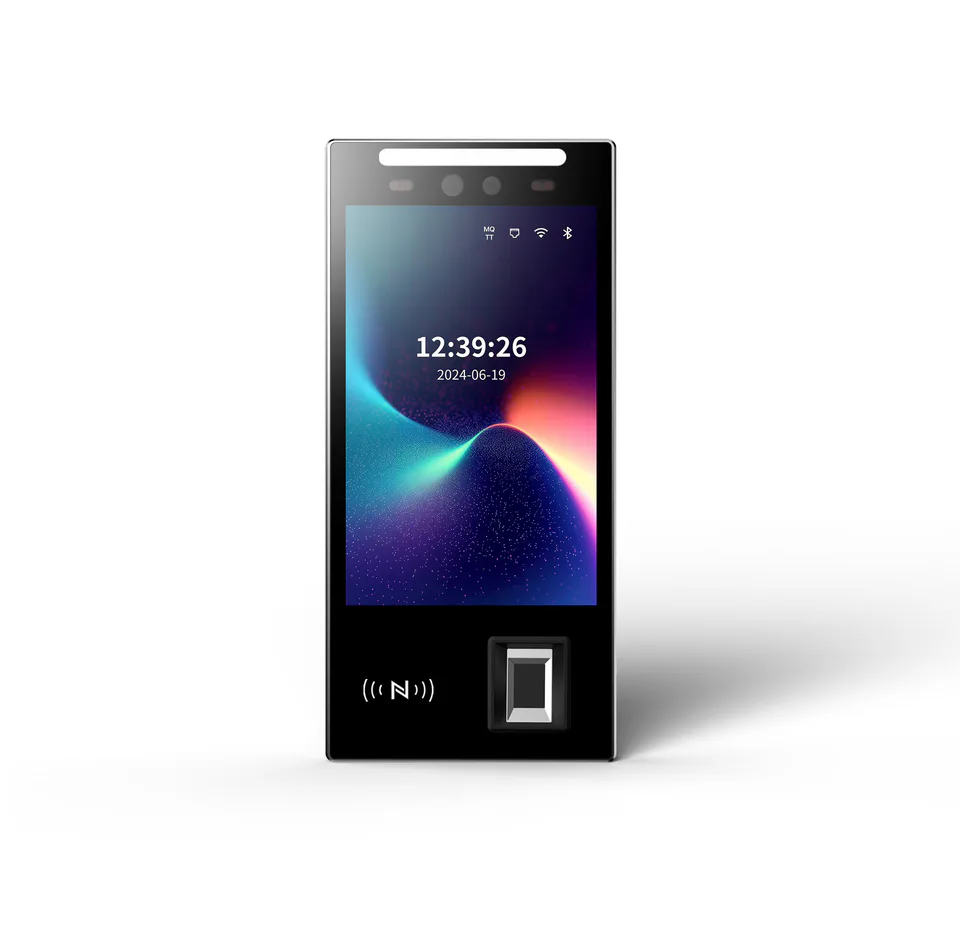

FCV4907 combines a portrait touch display with a fingerprint reader in the same front panel. Build an access or attendance interaction around face authentication, fingerprint input and the other credentials enabled for your project.
Explore the product manual
AT THE POINT OF INTERACTION
Choose the credential and application together. Functions depend on the selected modules, firmware and software.
Choose face authentication for enrolled users. Plan enrolment, user permission and the way the application handles an unrecognised visitor.
Offer fingerprint identification as an additional credential. Agree how it works with face, card and password rules; availability and capacity depend on the selected configuration.
Use the display for an instruction and a clear result. Your application decides whether to continue, ask for another credential or direct the visitor to assistance.
FROM IDENTITY TO ACTION
Connect through Ethernet or the specified network configuration. RS485, Wiegand 26/34, two inputs and a relay are described in the manual. DejaOS development is available on the supported configuration; the host system remains responsible for its own access policies.
Presents a credential or follows the on-screen prompt.
Validates identity and applies the agreed access rules.
Receives the result, controls passage and records the event as configured.
Integration outline. The terminal, host software, controller and lock need a matching configuration; this is not a wiring diagram.
DESIGN AROUND THE PLACE
Example workflows to discuss with your integrator.
Offer the credential methods agreed for your workforce, with the terminal displaying the result of your access policy.
Associate a verified identity with a time event in your attendance application. Set repeat-event and offline rules in the system.
Select face, fingerprint, card or password behaviour around the people using the entrance and the available management software.
Technical details
Options vary by configuration. Use these details to plan your evaluation.
| Operating system | Linux |
|---|---|
| Display | 8-inch LCD touch screen · 800 × 1280 pixels |
| Processor | Dual-core ARM Cortex-A7 · 1 GHz |
| Storage | 8 GB; 16 GB / 32 GB configurations available |
| Network | 10/100M Ethernet and 2.4 GHz Wi-Fi |
| Host interfaces | RS485, Wiegand 26/34, IO inputs and relay |
| Credentials | Face, fingerprint, card and password; application dependent |
| Power input | 9–24 V DC · 12 V recommended |
Installation & connections
Product resources
Manual · English · PDF · 1.5 MB
Fingerprint capacities differ between sections; confirm the supplied configuration.
Strong backlight, direct sunlight, reflections and close-range lighting can reduce capture quality. Evaluate the terminal in its intended position and avoid pointing the camera directly toward a bright window or concentrated light source.
Use a clear, front-facing JPG without beauty filters, heavy makeup, sunglasses, a mask or other facial obstruction. File size and image dimensions can vary by software and model, so confirm the current import requirements before preparing a large enrollment set.
Confirm whether the selected configuration uses wired networking, Wi-Fi or another connection method, then collect the network and platform settings required by that system. A local network connection does not by itself prove that the device is connected to the management service, so verify both states separately.
