Mortise smart lock with door viewer
A slim mortise smart lock in the door-viewer configuration, combining fingerprint, PIN, card and mechanical-key access. Match the mortise option, door thickness and Tuya network module to the actual entrance.
A slim mortise smart lock in the door-viewer configuration, combining fingerprint, PIN, card and mechanical-key access. Match the mortise option, door thickness and Tuya network module to the actual entrance.

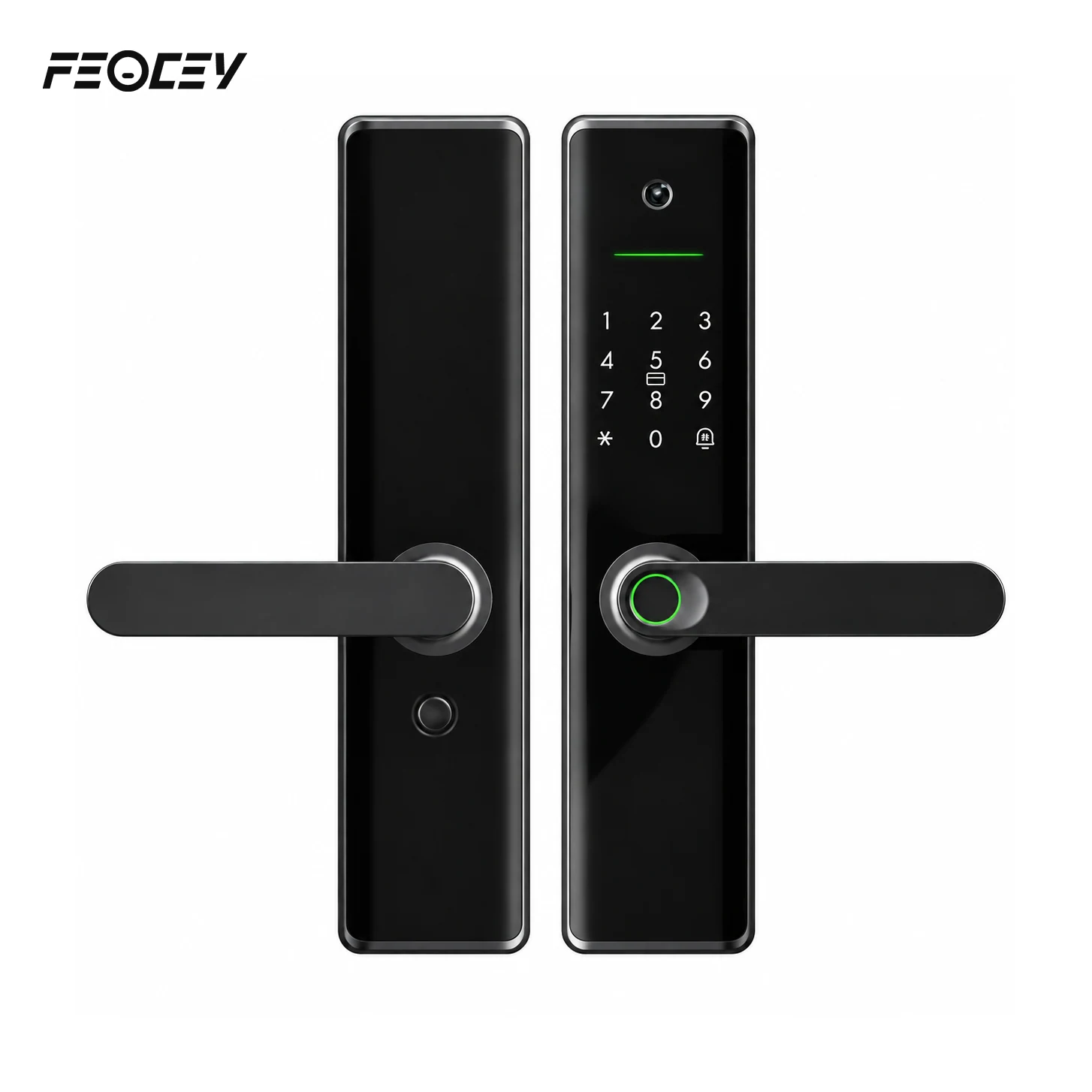

Supplied product illustration. Functions and installation hardware follow the confirmed order configuration.
FCV4288LD
Parameters follow the matching visible English manual, with supplier lock-body options where stated. Confirm the selected mortise or latch, door preparation, network module and firmware.
| Panel reference | 280 × 65 × 22 mm, from the visible door-viewer manual parameter table |
|---|---|
| Materials | Aluminum alloy and IML panel |
| Configuration | Door-viewer version |
| Access methods | Fingerprint, PIN, card and mechanical key |
| Credential capacity | 100 fingerprints, 300 PINs and 300 cards, as listed in the door-viewer manual |
| PIN length | 6–8 digits |
| App option | Optional Tuya Wi-Fi configuration; remote access follows the documented doorbell request and app approval |
|---|---|
| Mortise options | 50 × 50 / 55 × 72 / 50 × 85 / 60 × 85 mm supplier configurations; confirm the matching drawing |
| Door thickness | 45–55 mm; confirm the selected mortise, spindle and fixing hardware |
| Battery | Eight AA alkaline batteries |
| Working voltage | 4.5–6.0 V |
| Emergency access | Mechanical key and Type-C emergency power |
| Operating temperature | −25°C to 70°C |
Use enrolled fingerprints, 6–8 digit PINs and cards, with a mechanical key retained for backup. The matching door-viewer manual lists 100 fingerprints, 300 PINs and 300 cards. Confirm the selected firmware and household permissions before daily use.
Supplied product illustration. Functions and installation hardware follow the confirmed order configuration.

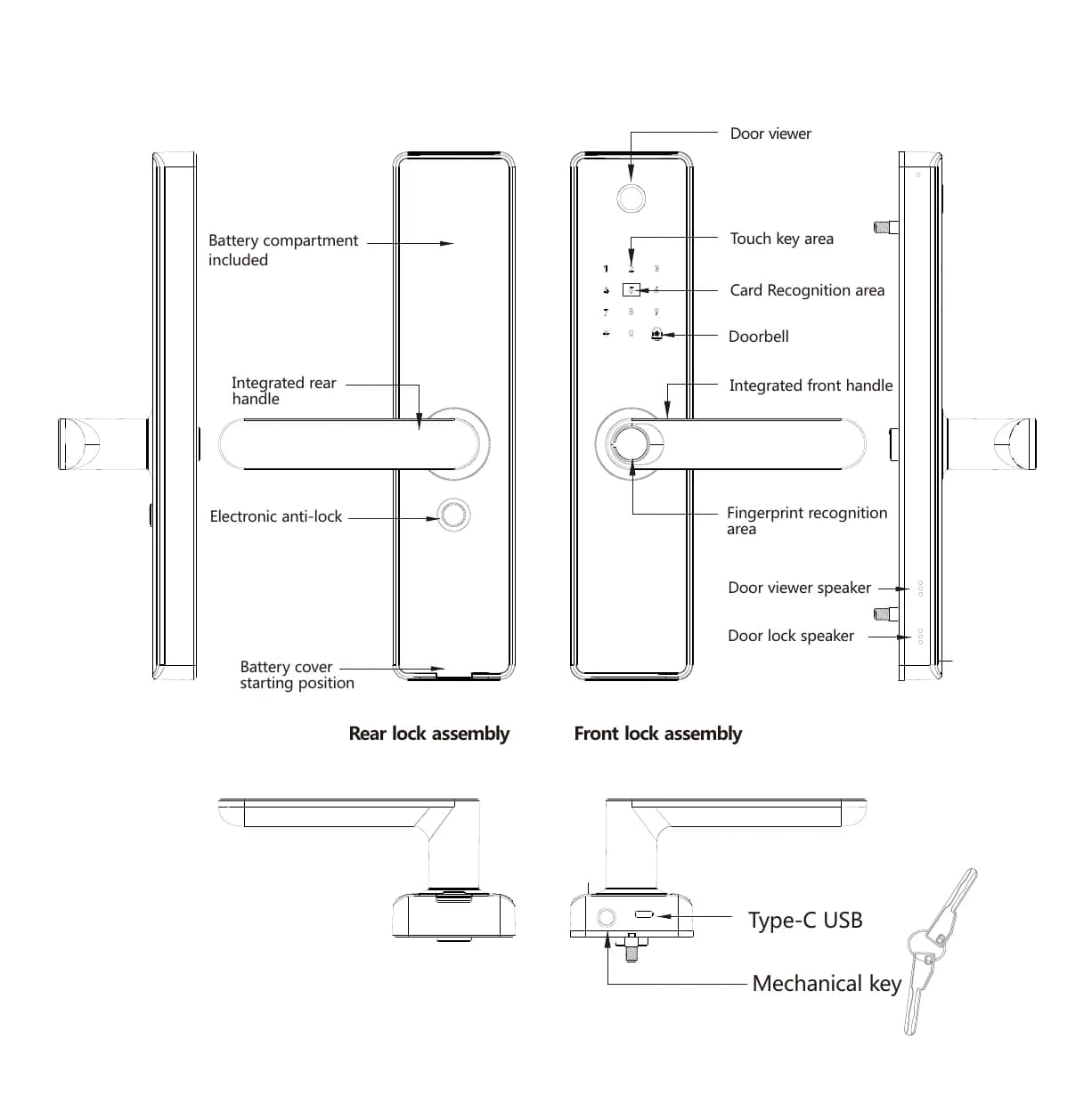

Use eight AA alkaline batteries, as specified in both the visible parameter table and installation instructions. The manual lists 4.5–6.0 V operation, a mechanical-key backup and Type-C emergency power. Confirm the external power requirements before connecting a power bank.
Follow the battery and emergency-power instructions for the supplied lock.

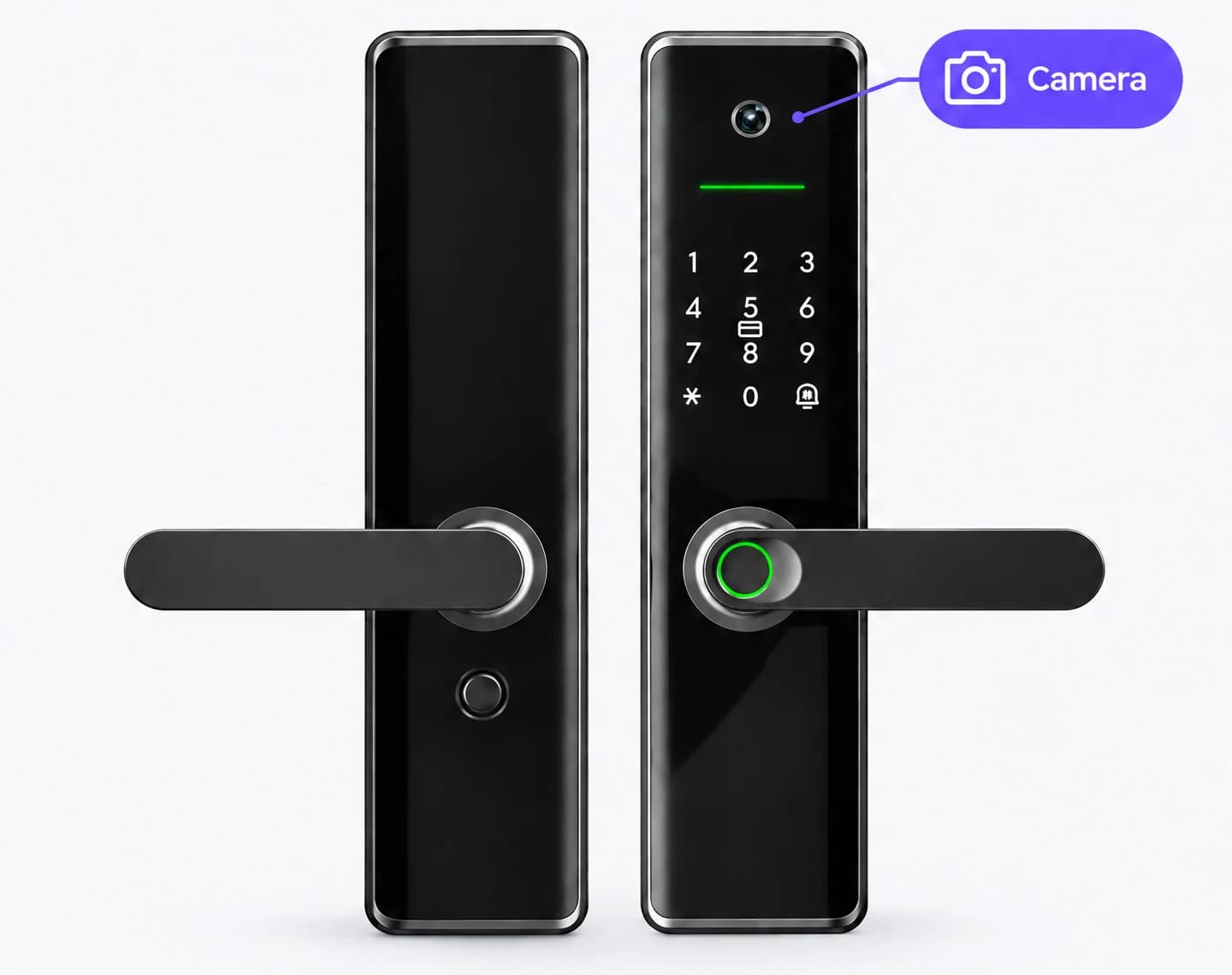

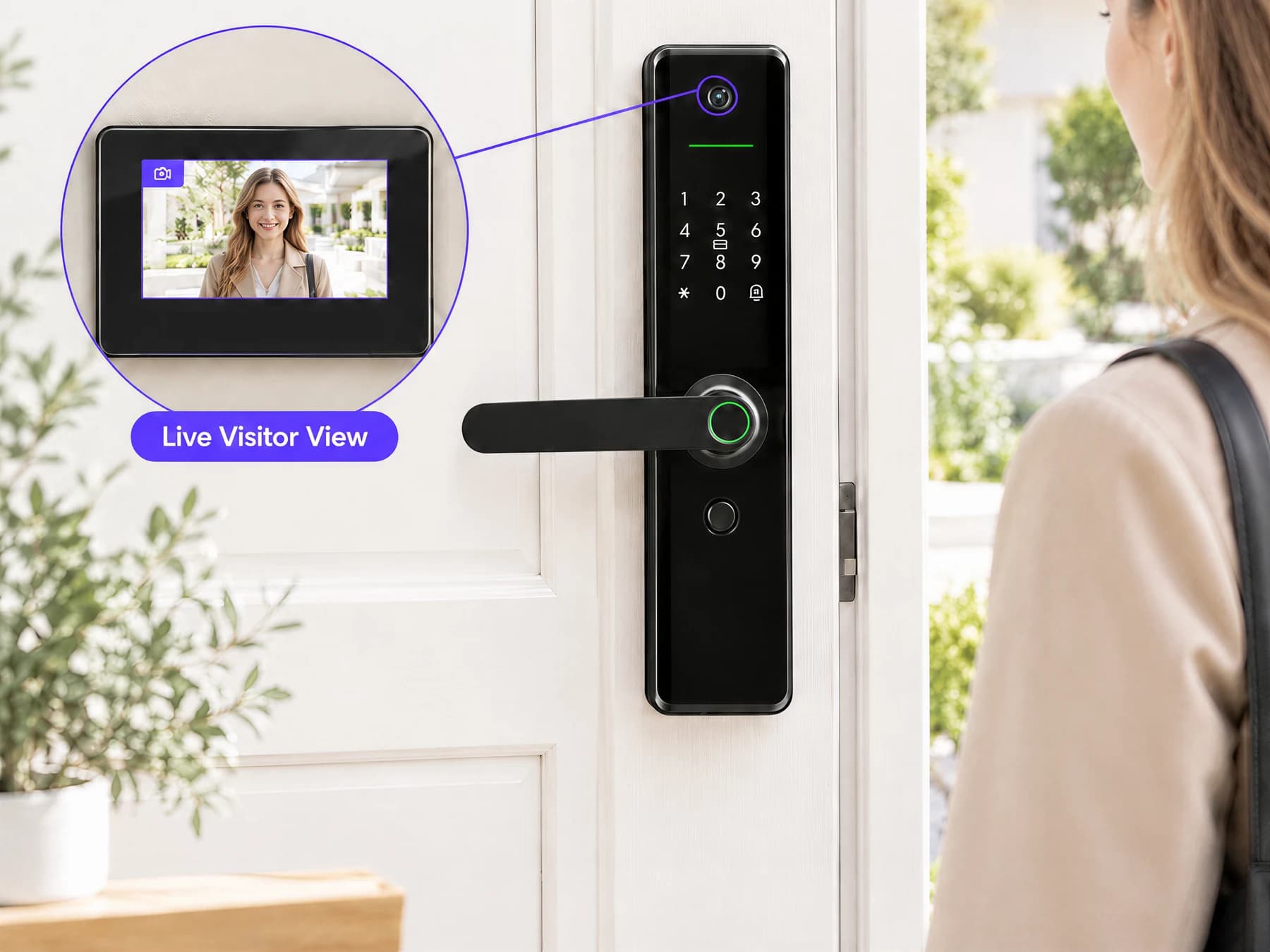

The supplied front panel and matching manual identify the door-viewer configuration. Optional Tuya Wi-Fi networking follows the documented doorbell request and approval process. Confirm the viewer functions and network module for the selected assembly.
Supplied product illustration. Functions and installation hardware follow the confirmed order configuration.

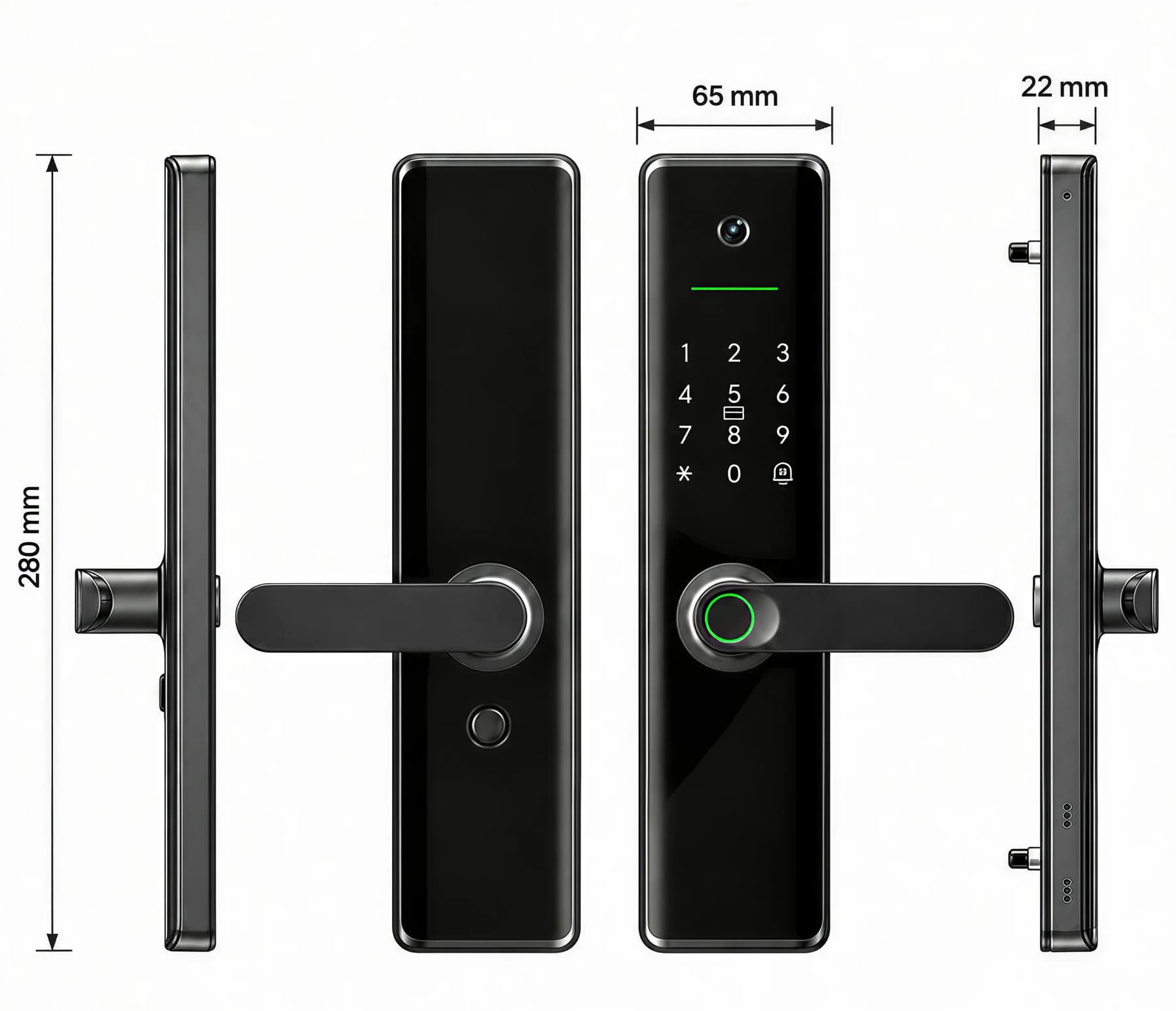

Check the 45–55 mm door thickness and 280 × 65 × 22 mm panel reference. Supplier mortise configurations are 50 × 50, 55 × 72, 50 × 85 and 60 × 85 mm. Compare the selected body, spindle and mounting template with the door before preparation.
View installation referenceDoor and panel dimensions are not a promise of compatibility with every door standard. Confirm the exact preparation.
Confirm the opening direction, install the selected mortise and set the handle direction. Route the cable, align the spindle, secure both panels and insert eight AA alkaline batteries. Complete credential, latch, door-viewer and emergency-access checks with the door open.
View installation referenceUse the matching manual and the template for the supplied lock-body configuration.
Manuals and integration support for FCV4288LD.
Documents for FCV4288LD →Use the Tuya WiFi setup reference for the FCV4288LD Door viewer configuration. Confirm the supplied camera, display, network and enabled app functions against the matching manual.
The approved reference covers the Door viewer configuration. Match the camera, interior display, lock assembly and firmware to that reference before installation or setup.
Match the FCV4288LD Door viewer assembly and lock body to the door measurements, opening direction and installation reference.
