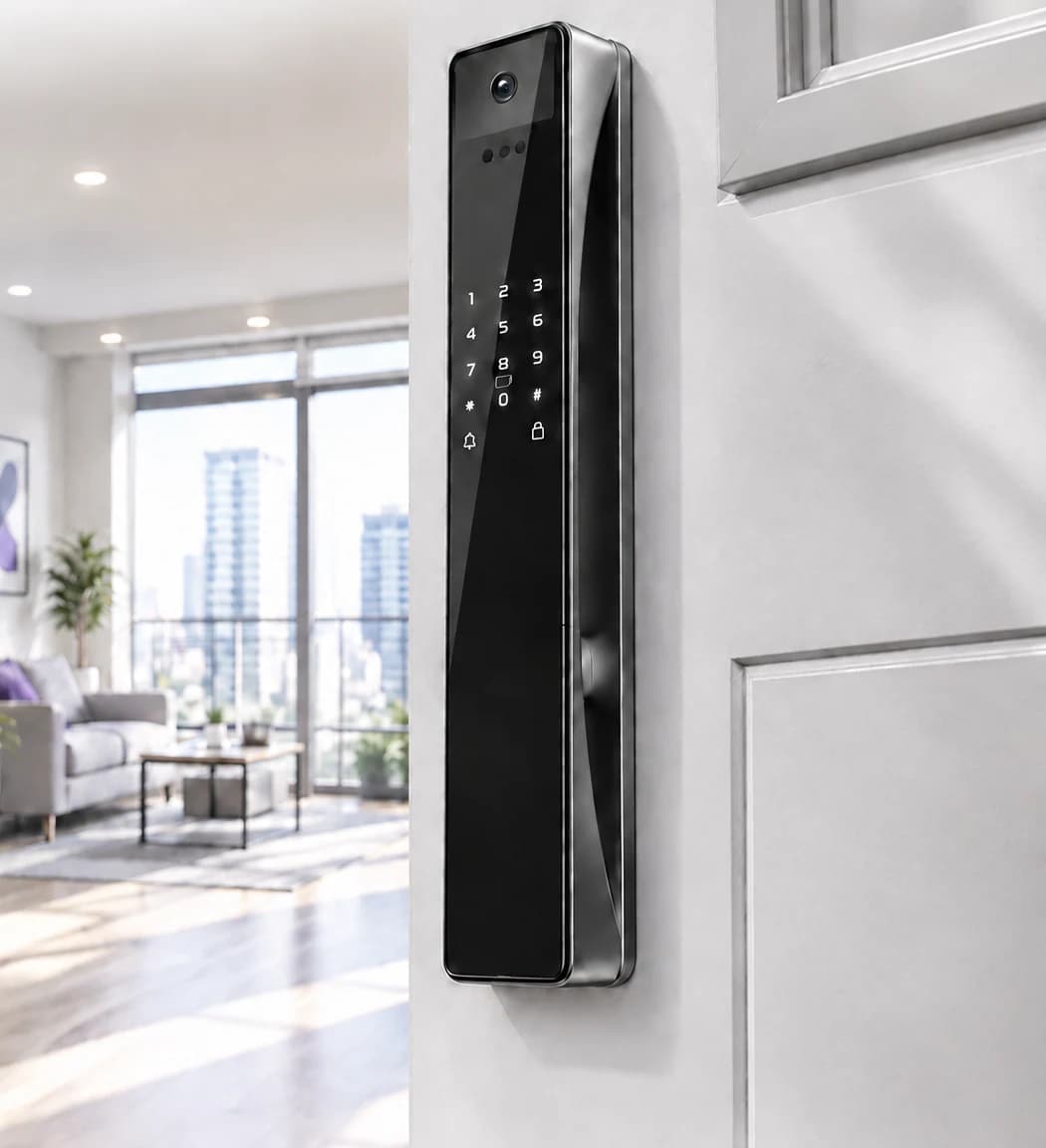

Residential mortise smart lock with door viewer
A residential mortise smart lock with face, palm and fingerprint access, a door-viewer camera and an interior display. Match the 6068 lock body, door measurements and selected Tuya network configuration before ordering.
A residential mortise smart lock with face, palm and fingerprint access, a door-viewer camera and an interior display. Match the 6068 lock body, door measurements and selected Tuya network configuration before ordering.

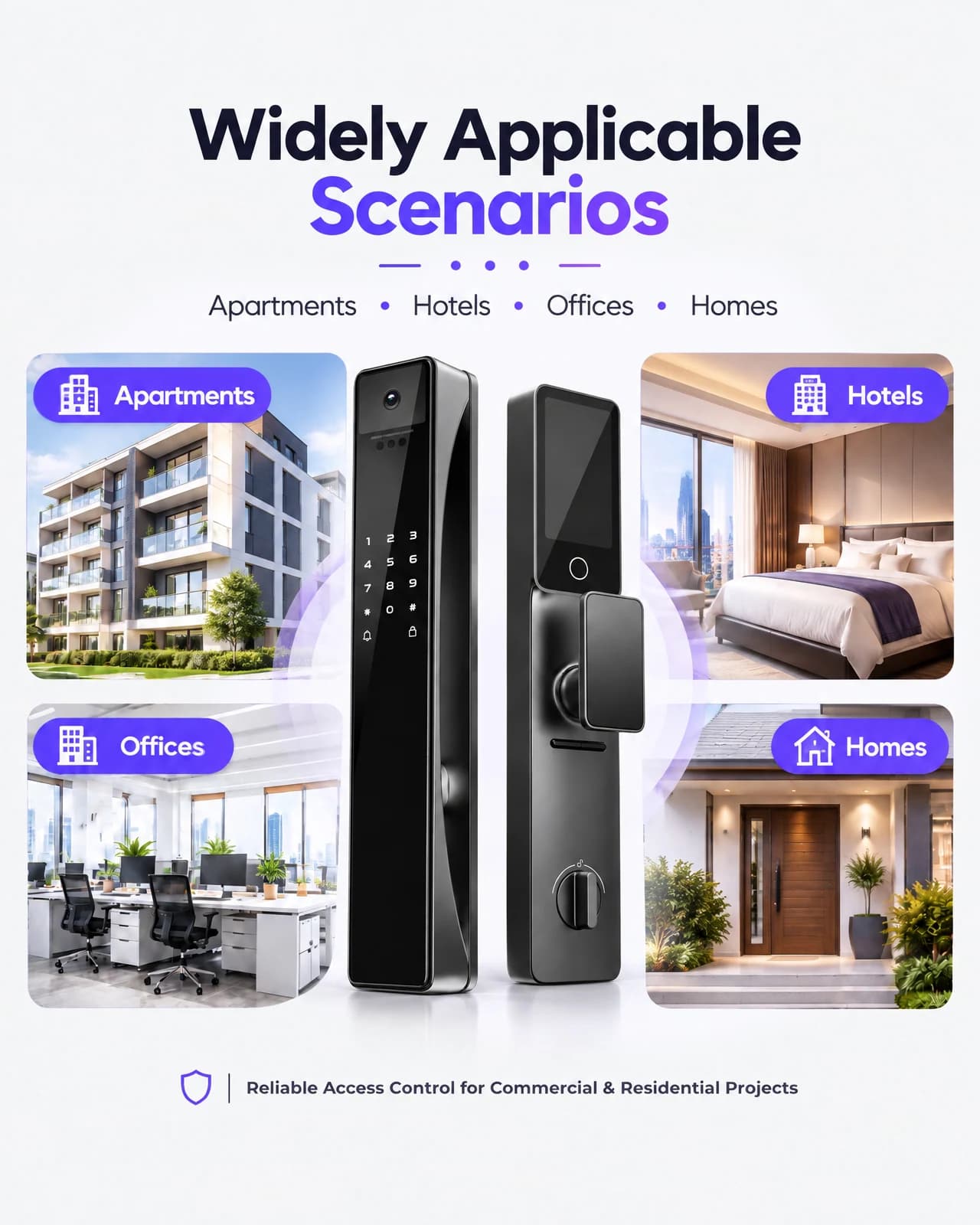

Supplied product illustration. Functions and installation hardware follow the confirmed order configuration.
FC101DH
Parameters follow the matching visible English manual, with supplier lock-body options where stated. Confirm the selected mortise or latch, door preparation, network module and firmware.
| Exterior panel | 420 × 74 × 55 mm |
|---|---|
| Interior panel | 420 × 74 × 25 mm |
| Lock body | 6068 mechanical / electronic mortise configurations; confirm the supplied version |
| Door thickness | 35–75 mm; confirm the mortise, door preparation and opening direction |
| Access methods | 3D face, palm vein, fingerprint, PIN, IC card and mechanical key |
| Credential capacity | 100 face, 100 palm, 100 fingerprint, 300 passcode and 300 card users, as listed in the manual |
| Door viewer | 2 MP camera; 140-degree view listed in the manual |
|---|---|
| Interior display | 4.5-inch HD display |
| App option | Tuya Wi-Fi configuration; remote access follows the documented doorbell request and approval workflow |
| Working voltage | 6.5–8.0 V |
| Battery | 5000 mAh rechargeable lithium battery |
| Emergency access | Mechanical key and Type-C emergency power |
| Materials | Aluminum alloy and tempered-glass panel |
| Operating temperature | −25°C to 60°C |
Enrol the face, palm, fingerprint, PIN and IC card credentials required by the household. The matching manual describes each method and its own capacity. Register administrators and test the configured unlocking methods before everyday use.
Supplied product illustration. Functions and installation hardware follow the confirmed order configuration.

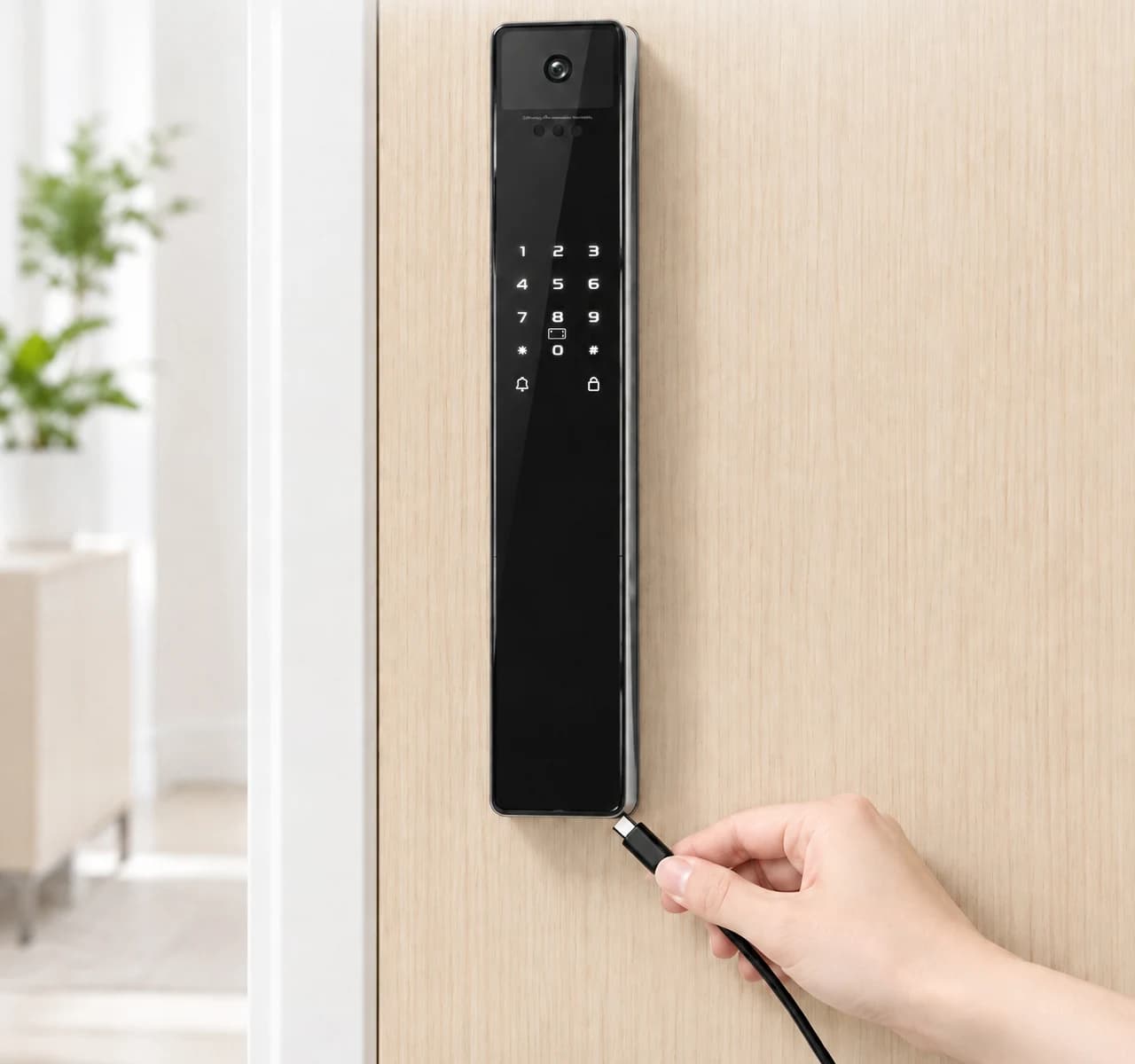

Use the specified 5000 mAh rechargeable lithium battery and follow its charging instructions. The mechanical key and Type-C emergency power provide backup access when the battery is depleted. Keep the matching key available and use the specified emergency power source.
Follow the battery and emergency-power instructions for the supplied lock.
The door-viewer camera and 4.5-inch interior display support visible door interactions. The manual lists a 2 MP camera with a 140-degree view. Optional Tuya Wi-Fi networking supports the documented doorbell request and approval workflow; confirm the enabled functions and firmware.
Supplied product illustration. Functions and installation hardware follow the confirmed order configuration.

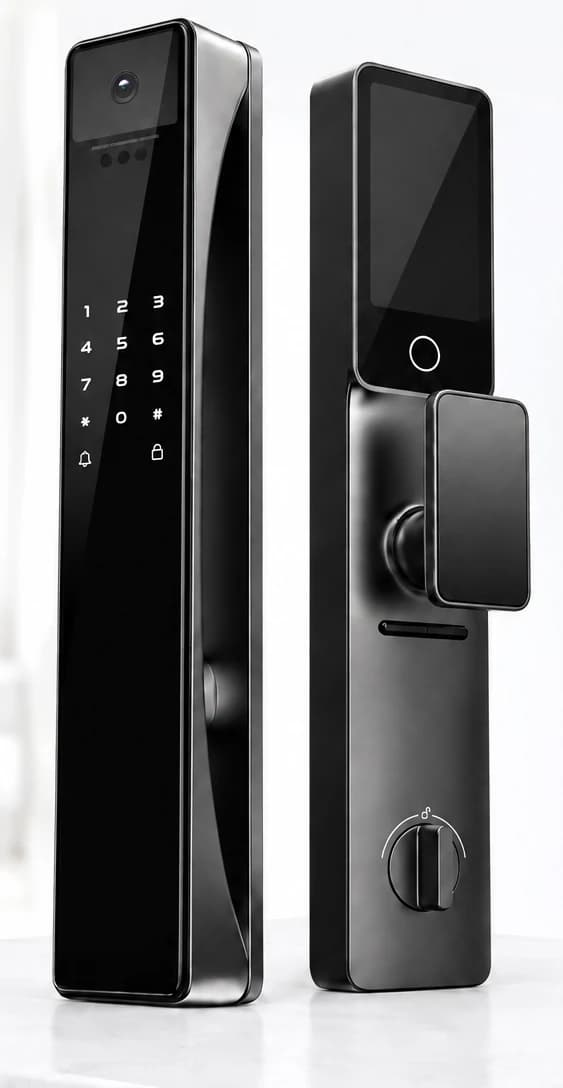

Review the 6068 mechanical or electronic mortise configuration, 35–75 mm door thickness and opening direction with your installer. The manual lists a 420 × 74 × 55 mm exterior panel and 420 × 74 × 25 mm interior panel. Panel dimensions do not establish the drilling pattern.
View installation referenceDoor and panel dimensions are not a promise of compatibility with every door standard. Confirm the exact preparation.

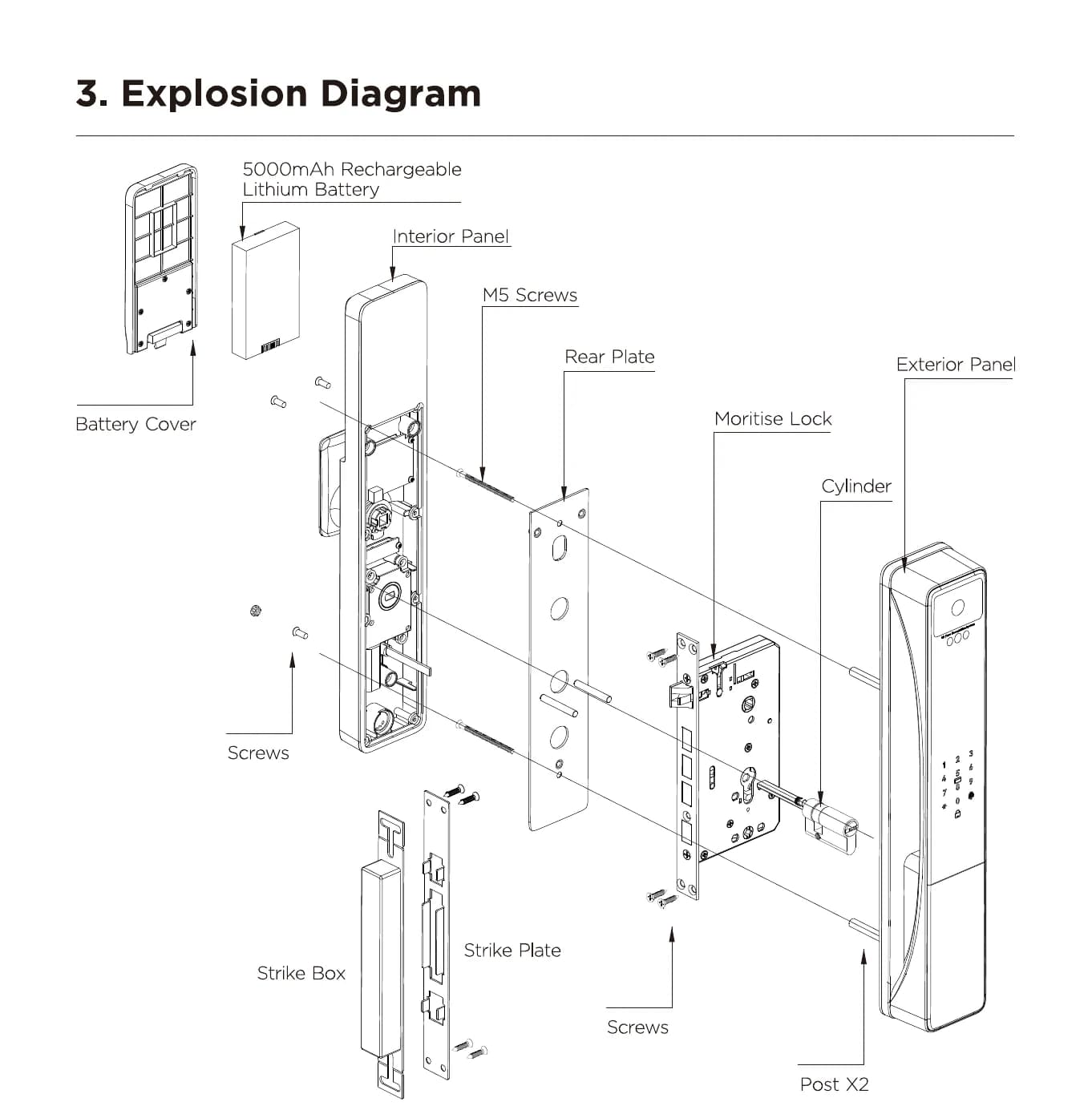

Use the matching template to mark the door, fit the mortise, route the cable and secure the exterior and interior panels. Check the latch and bolt movement before programming. Complete credential, locking and backup-access tests with the door open.
View installation referenceUse the matching manual and the template for the supplied lock-body configuration.
Manuals and integration support for FC101DH.
Documents for FC101DH →The supplied English manual describes Tuya WiFi setup. Confirm the exact network version, firmware and enabled app functions for the supplied FC101DH assembly.
The supplied manual lists a 6068 mortise configuration and a door thickness of 35–75 mm. Confirm the actual mortise, opening direction, door preparation and mounting template. Panel dimensions alone do not establish compatibility with an existing door.
It describes a matching mechanical key and a Type-C emergency power connection when the battery is depleted. Keep the key available and use the power instructions for the supplied lock assembly.
