FC7730 / 01
See how the parts fit.

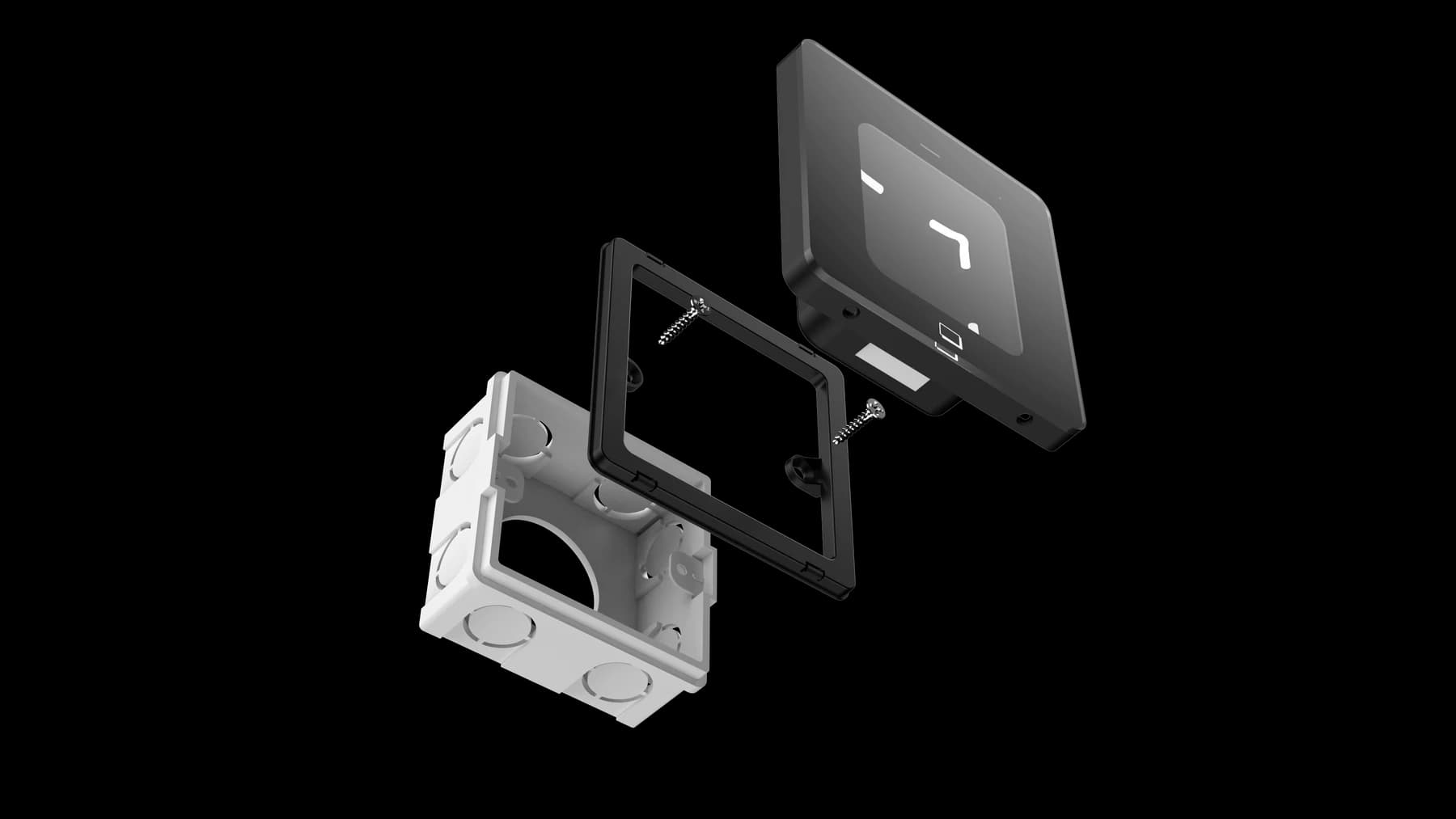

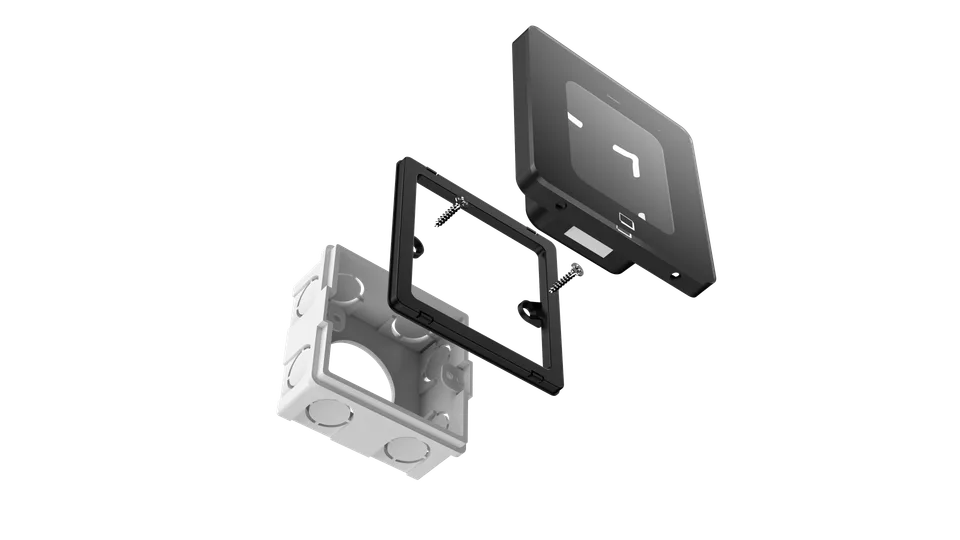

The mounting frame sits between the reader and the installation box. Use the assembly view to discuss the opening, fixings and cable route with your installer.
QR Readers & Terminals
FC7730
QR reader
QR input beside the door.
A QR reader for access and equipment projects. Review the front, mounting frame and rear profile to plan a tidy installation around your host system.
- QR reader
- Access & equipment
In your project
Plan the reader and host together.
The reader captures the credential; your host application determines what happens next. Choose the output interface, power and mounting arrangement as one system.
Product resources
Manuals & drawings.
Documents for FC7730 →Need the FC7730 manual, specification or installation drawing? We’ll help you find the document for your configuration.
Request documentsA few things worth knowing.
What should I check if serial output is missing or unreadable?
Match the baud rate, data format and electrical interface on both sides, then inspect the cable and any serial-to-USB adapter. Also confirm whether the reader is sending raw content or a framed protocol message before treating additional bytes as corrupted data.
Why can output differ from the original QR content?
A reader in transparent output mode may send the original content, while a protocol or development mode can add a header, length, device information and check data. Select the mode that matches the host application and use the protocol reference for that model and firmware.
Can repeated scans of the same code behave differently?
Yes. Single-read and interval modes can treat repeated presentation of the same code differently, while a different code may still be accepted immediately. Confirm which modes and repeat intervals are available for the selected reader before defining the user flow.
Your next step
Let’s put FC7730
in your project.
Tell us where it will be used, how it should connect and the quantity you need.
