FC6822 / 01

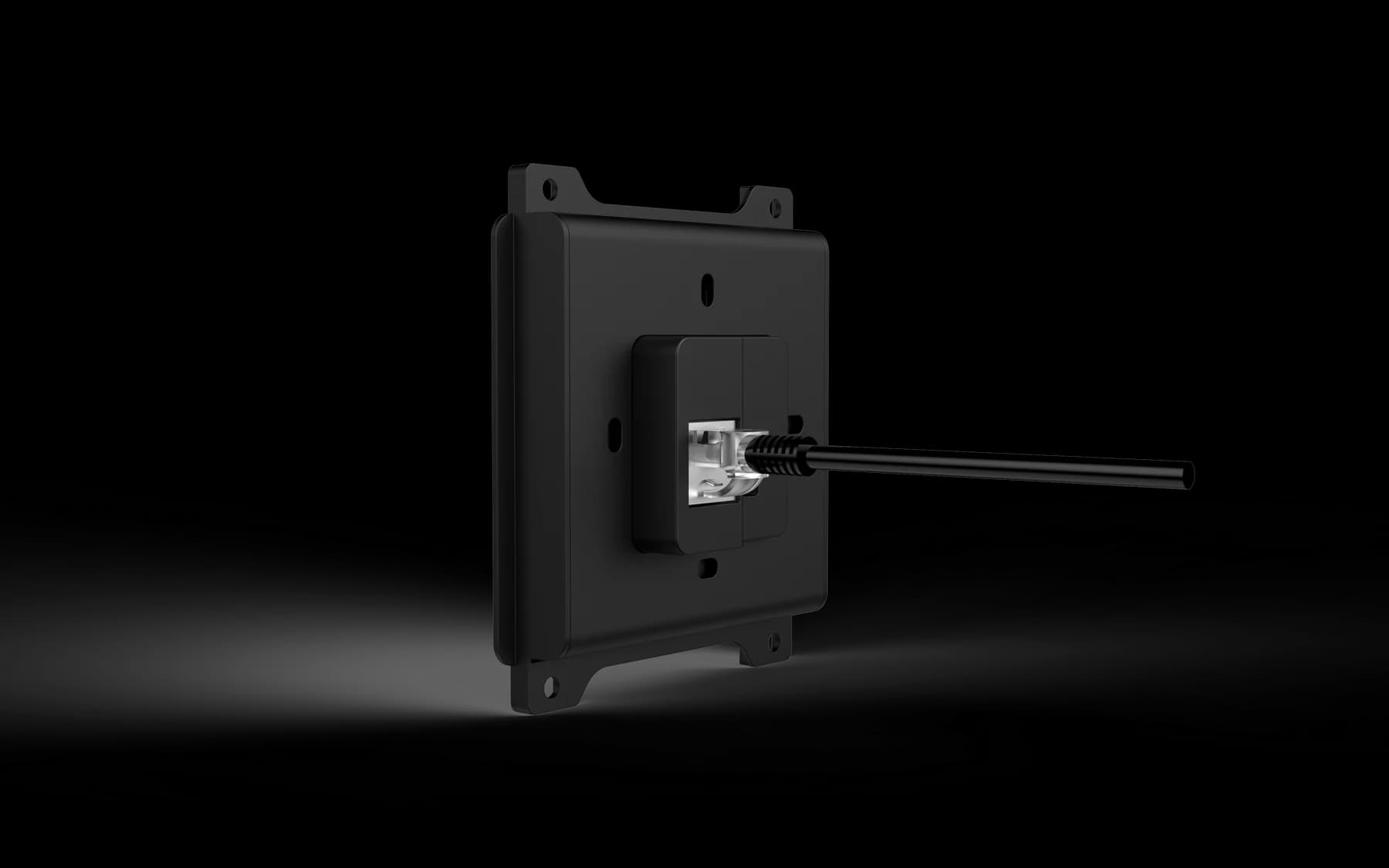

Leave space behind the surface.
The mounting tabs secure the terminal within the panel. Allow rear clearance for the selected cable set and retain access for service.
QR Readers & Terminals

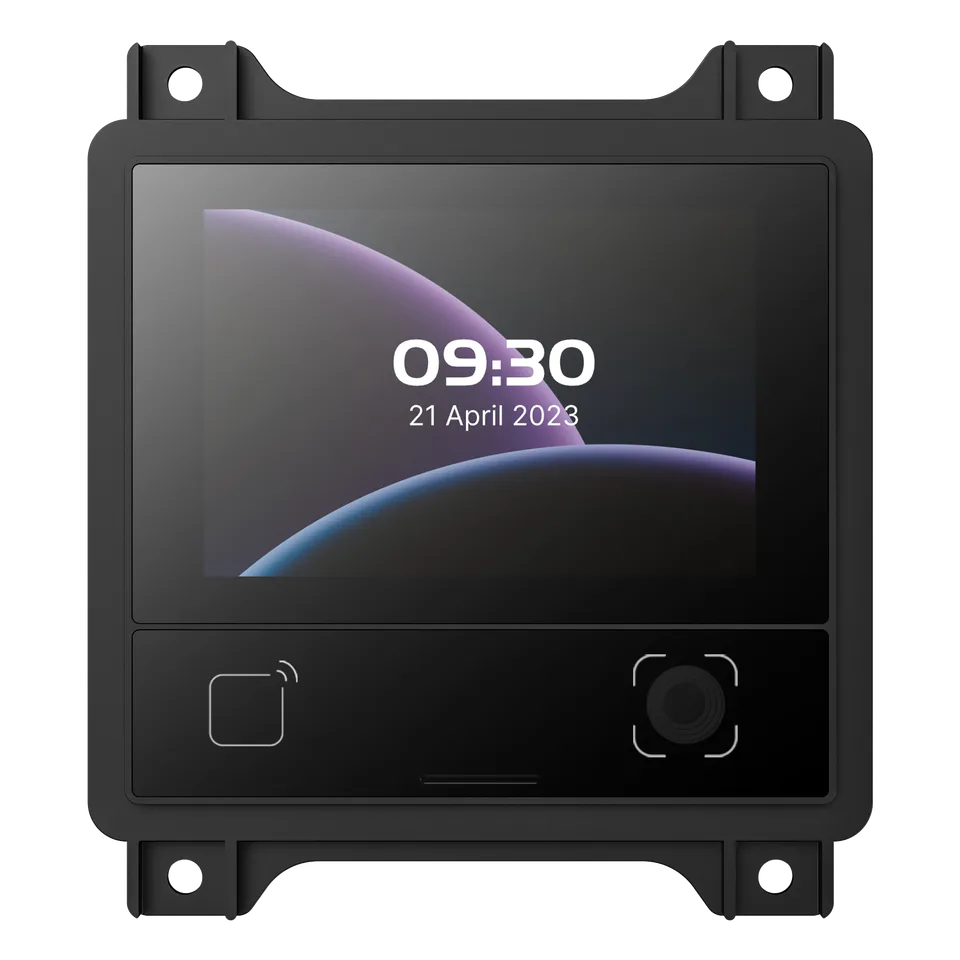

FC6822
Flush-mount display QR terminal
Build the interaction into the surface.
A flush-mount QR and card terminal with a 3.33-inch touch display. FC6822 fits projects that need the user interface integrated into a panel or enclosure.
- Flush mounting
- 3.33-inch touch display
- QR & card options
In your project
Designed into the installation.
Plan the panel opening and rear service space together. The screen stays accessible at the front while power and communication cables run behind the mounting surface.
Technical details
A closer look.
Options vary by configuration. Use these details to plan your evaluation.
| Display | 3.33-inch touch display |
|---|---|
| Credentials | QR code, password and card options by configuration |
| Installation & interfaces | Flush mounting; Ethernet, RS485, Bluetooth and optional Wi-Fi |
Product resources
Manuals & drawings.
Documents for FC6822 →Need the FC6822 manual, specification or installation drawing? We’ll help you find the document for your configuration.
Request documentsA few things worth knowing.
What should I check if serial output is missing or unreadable?
Match the baud rate, data format and electrical interface on both sides, then inspect the cable and any serial-to-USB adapter. Also confirm whether the reader is sending raw content or a framed protocol message before treating additional bytes as corrupted data.
Why can output differ from the original QR content?
A reader in transparent output mode may send the original content, while a protocol or development mode can add a header, length, device information and check data. Select the mode that matches the host application and use the protocol reference for that model and firmware.
Can repeated scans of the same code behave differently?
Yes. Single-read and interval modes can treat repeated presentation of the same code differently, while a different code may still be accepted immediately. Confirm which modes and repeat intervals are available for the selected reader before defining the user flow.
Your next step
Let’s put FC6822
in your project.
Tell us where it will be used, how it should connect and the quantity you need.
