FC6820QR Scanners
DejaOS
Product appearance and screen content are for reference. Confirm the supplied configuration before ordering.
Minimum order quantity will be confirmed on Alibaba.com.
Configuration
You can confirm the quantity again on Alibaba.com.
Your selection
- Model
- FC6820
- Configuration

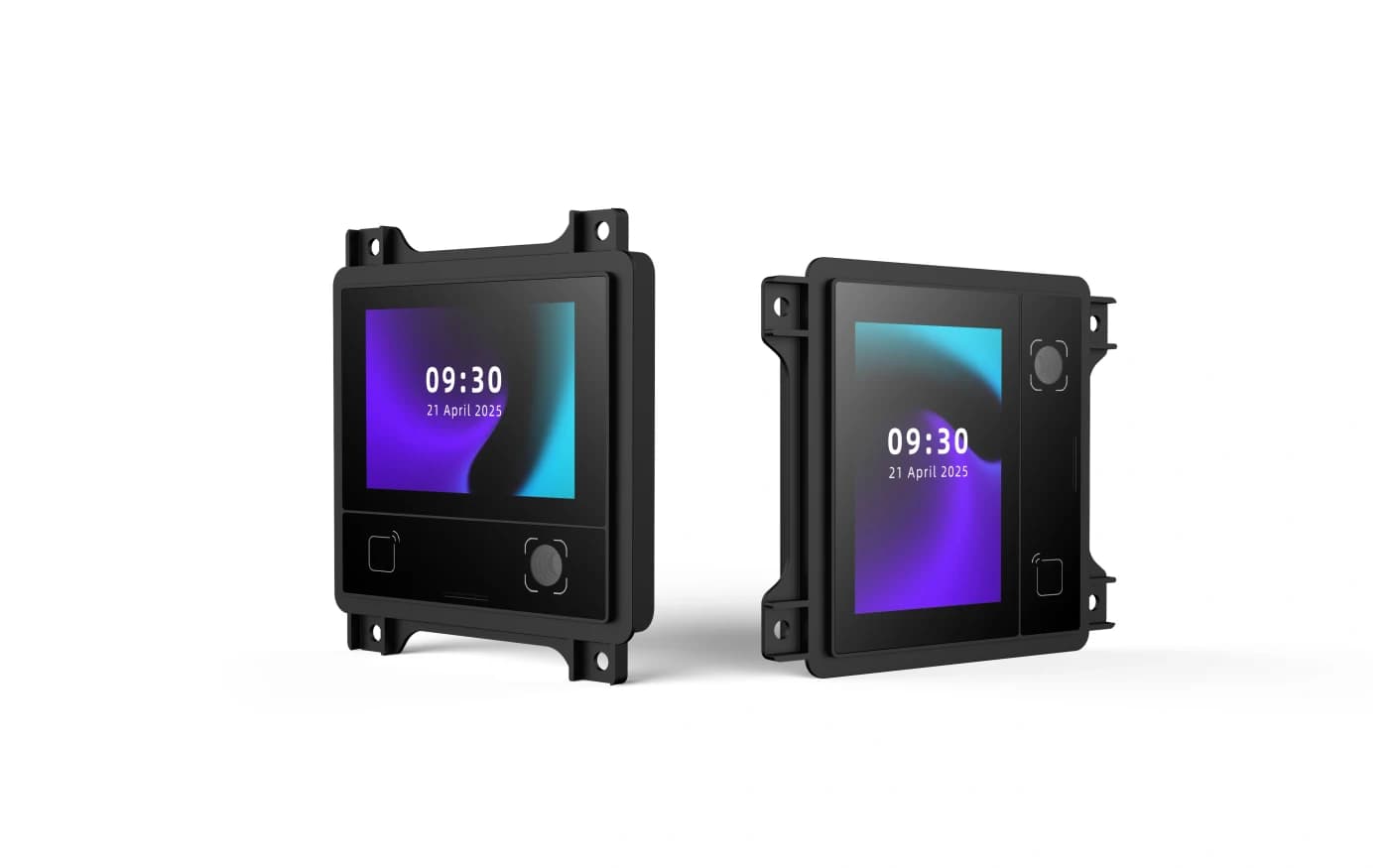

- Model Number: Embedded installation · Communication Interface: Access control support RS485 and Ethernet
- Quantity
- 1
Alibaba.com opens in a new tab to confirm the same configuration, quantity and payment. Your selection is saved here; it is not automatically selected on Alibaba.com.
Shipping options and charges, taxes and the final order total must be confirmed on Alibaba.com.
PRODUCT DOCUMENTS
Keep the manual close.
Installation, wiring and operation references for FC6820.
- Download PDF
FC6820 user manual
Manual · English · PDF · 1.9 MB
The source manual uses the DW200 hardware designation. Match the reader or access-control version before wiring.
- Download PDF
FC6820 interface and wiring guide
Integration guide · English translation · PDF · 461 KB
The source filename says READER, while its diagrams include access-control connections. Use it only after matching the exact terminal version and harness.
Built around your project.
Start with the hardware, then define the experience, integration and deployment requirements.
- Operating system
- Linux / DejaOS
- Display
- 3.33-inch IPS capacitive touch screen · 320 × 480 pixels
- Wired communication
- Ethernet and RS485
- Bluetooth
- BLE 5.1
- Access-control connections
- Exit-switch input, door-contact input and relay output on the access-control configuration
- Power input
- 9–15 V DC · 12 V typical
- Mounting
- 86-box surface mounting
- Options
- Reader, access-control, voice and Wi-Fi variants; confirm the required configuration
Detailed electrical, mechanical and interface specifications must be confirmed for the supplied configuration.
Develop with DejaOS.
FC6820 is listed as supported DejaOS hardware. Confirm firmware, device APIs, peripherals and application compatibility for your configuration.
