Space for your interface.

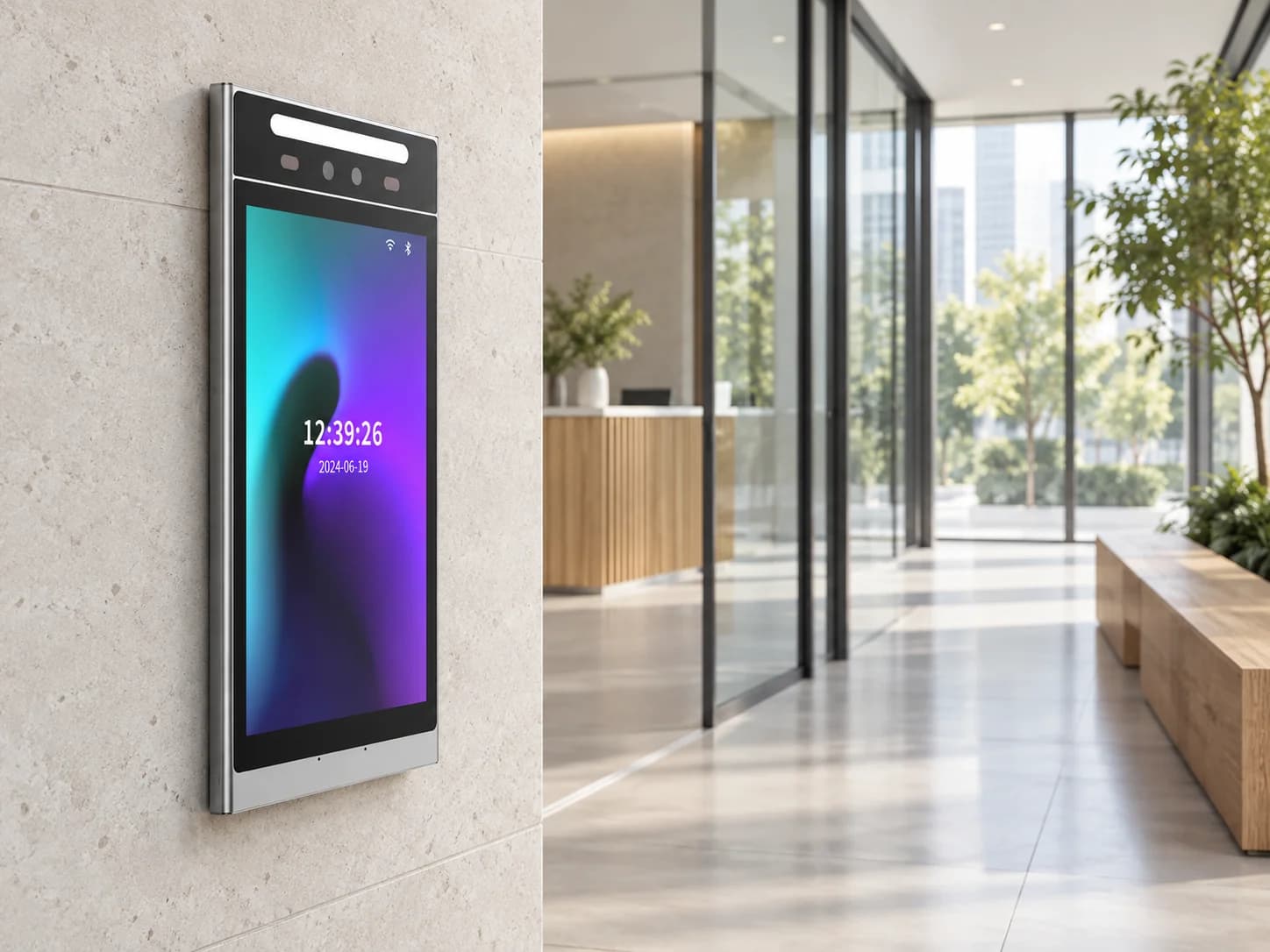

FCV5005 brings an 8-inch display to access and attendance workflows.
Face terminals.
Built for your entrance.
Bring identity, visitor entry and your device interface into the same space.
Find your modelMake the entrance
part of the experience.
Choose a visible 8-inch interface or a compact 5.5-inch terminal. Build around the way people arrive.
A smaller footprint.

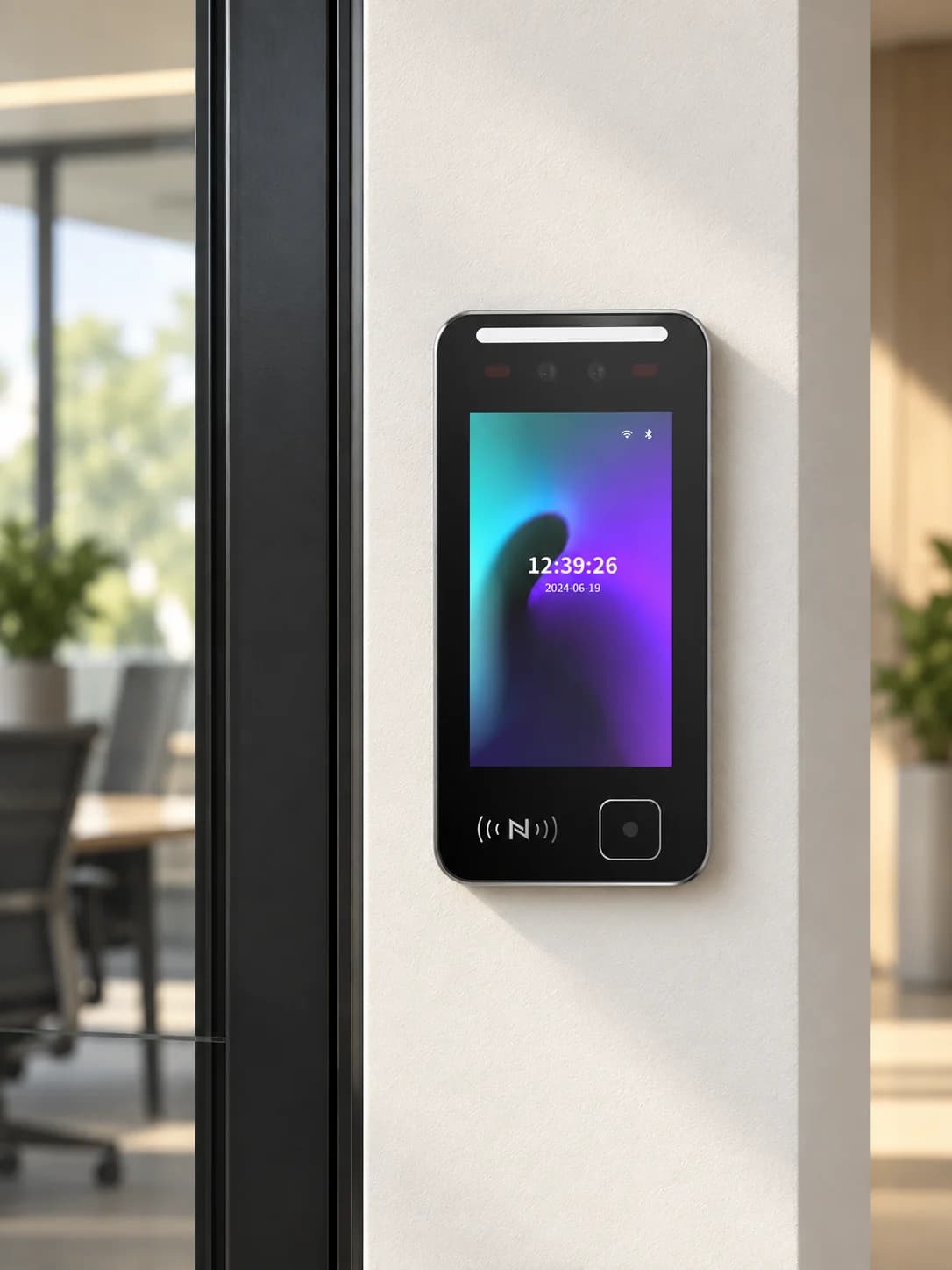

The documented 6-inch FCV4914 version fits compact doorway interactions.
Your workflow.
On the screen.

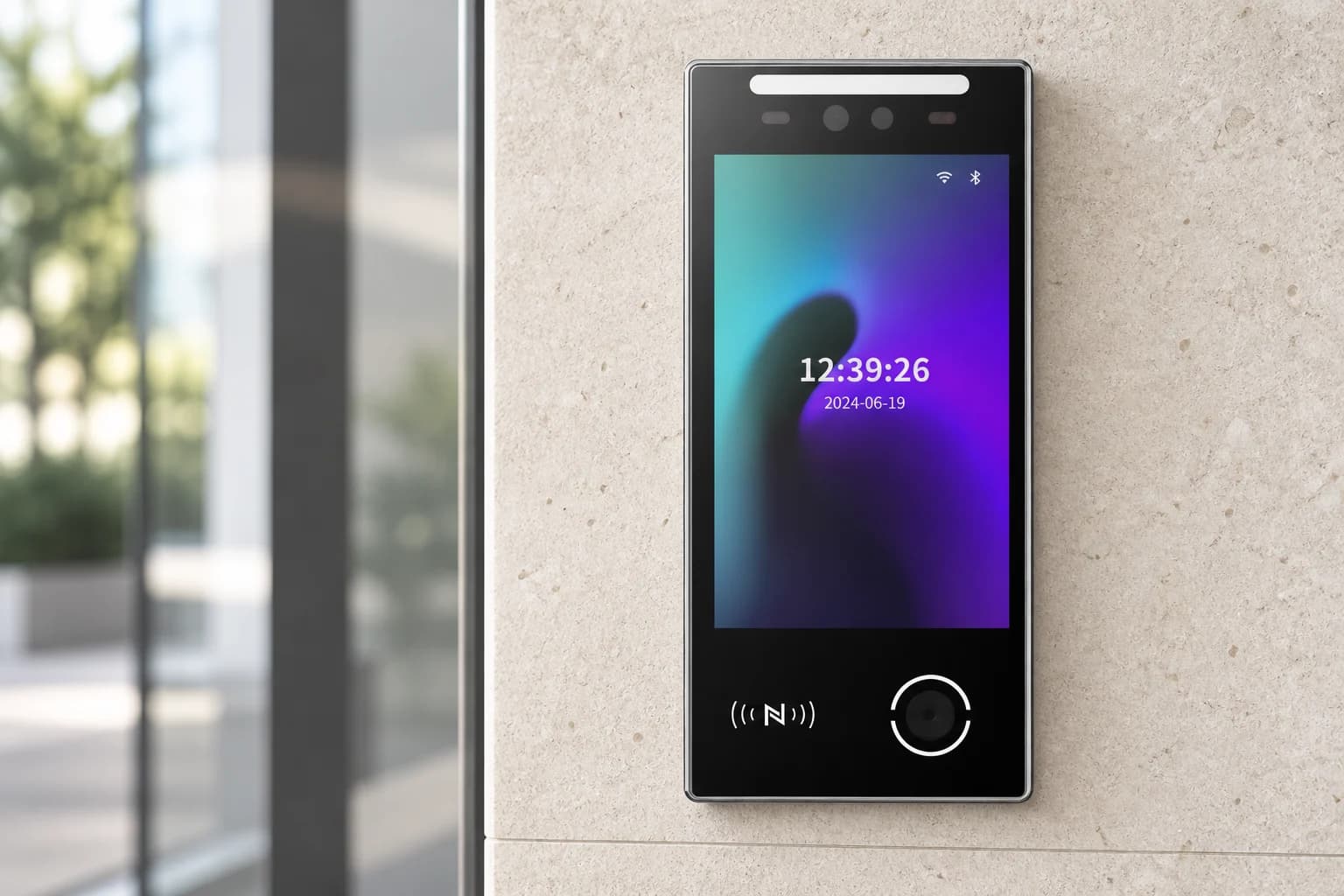

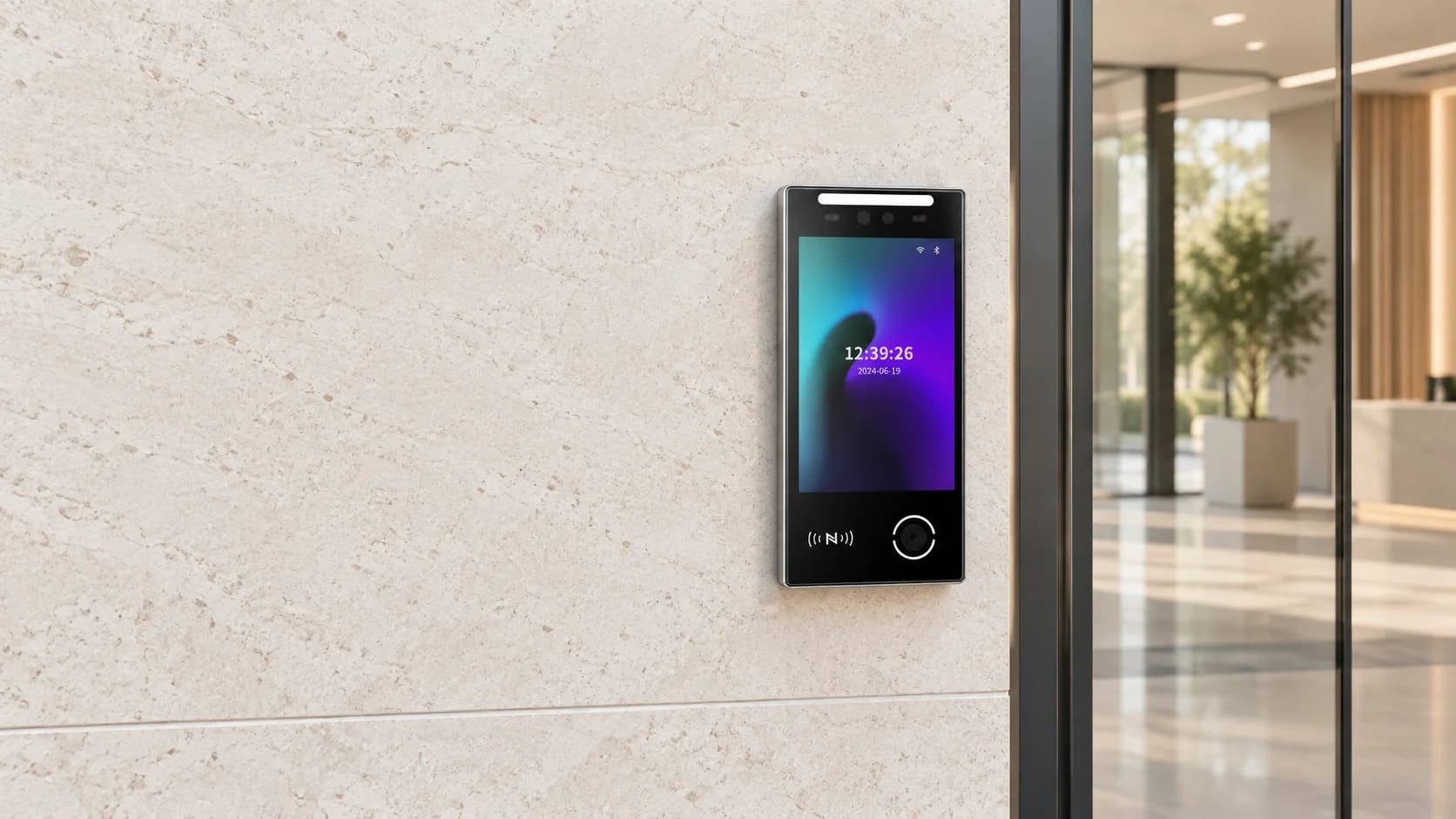

Explore FCV4905 for visible identity, visitor and access applications. Credential methods and software scope are selected by configuration.
AI-generated application scenes illustrate possible settings, not customer installations or installation specifications.
Find your fit.
Choose by display size, credential mix, mounting and the interfaces your deployment needs.
Compare models
| Model | Display | Core use | Credentials | Interface / mounting |
|---|---|---|---|---|
| FCV4905 | 8-inch touch display | Visible identity, visitor and access workflows | Face, QR code, card and password options by configuration | Wall-mount and pedestal configurations; wired and wireless interfaces vary |
| FCV5005 | 8-inch touch display | Access, attendance and interactive identity workflows | Face and password; card options depend on configuration | Wall-mount and pedestal configurations; RS485, Wiegand, Ethernet and Wi-Fi options |
| FCV4914 | 6-inch display | Compact wall-mounted identity and access workflows | Face, QR code and card options by configuration | Wall-mount or pedestal configurations; network and access-control interfaces vary |
A few things worth knowing.
What lighting conditions should we consider?
Strong backlight, direct sunlight, reflections and close-range lighting can reduce capture quality. Evaluate the terminal in its intended position and avoid pointing the camera directly toward a bright window or concentrated light source.
What kind of enrollment photograph should we use?
Use a clear, front-facing JPG without beauty filters, heavy makeup, sunglasses, a mask or other facial obstruction. File size and image dimensions can vary by software and model, so confirm the current import requirements before preparing a large enrollment set.
What should we confirm before connecting a face terminal to the network?
Confirm whether the selected configuration uses wired networking, Wi-Fi or another connection method, then collect the network and platform settings required by that system. A local network connection does not by itself prove that the device is connected to the management service, so verify both states separately.
What is DejaOS used for?
DejaOS provides a JavaScript development environment for supported devices. Developers can build device interfaces and application workflows using the modules available for the selected hardware, SDK and firmware.
Does every Feocey product support DejaOS?
No. Check support for the exact overseas model and configuration before choosing a development device. Use the current official documentation and confirm the matching SDK, firmware and hardware modules.
Can an example for one device run on another?
Some JavaScript application logic and resources can be reused, but native modules, SDK versions, screen dimensions and hardware capabilities must match the target. Treat an example as a starting point and validate every hardware-dependent part on the actual device.
What should I share when choosing a device?
Tell us which credentials people will use, where the device will be installed, which interfaces are required and what should happen in the software workflow. A mounting drawing, host-equipment description or simple process diagram helps us identify the questions that must be confirmed before recommending a configuration.
Does every configuration include the same features?
No. Credential modules, interfaces, mounting parts, network options and software can vary within the same product family. Confirm the exact model and selected options in writing before designing an enclosure, cable set or integration around it.
Let's find the right device.
Configuration, compatibility and delivery scope are confirmed for your project.
