AB interlocking access gate

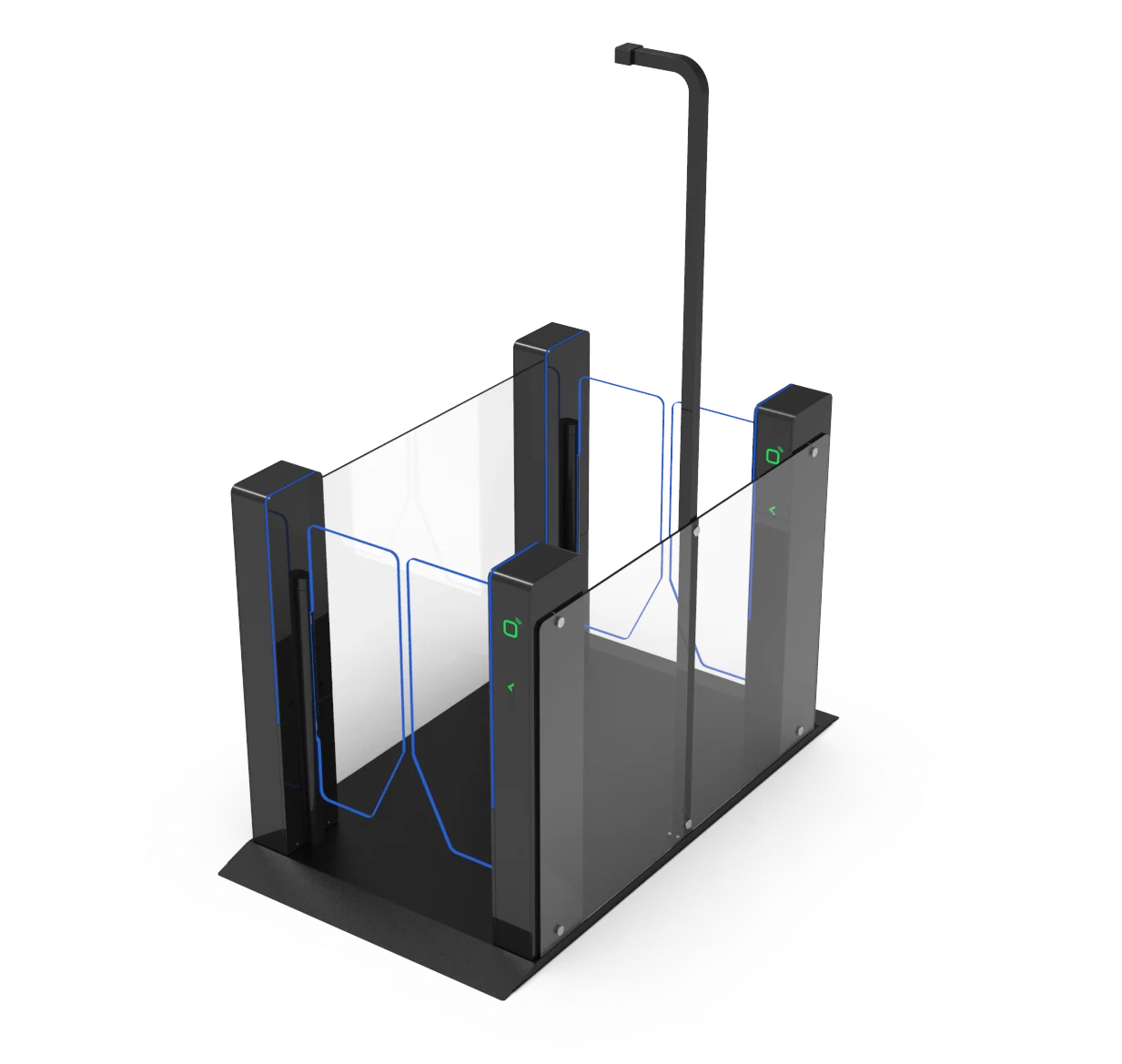

An AB access gate with a defined passage area, an infrared array and an AI camera. Plan the credential checks, passage sequence and supervision for the entrance.
An AB access gate with a defined passage area, an infrared array and an AI camera. Plan the credential checks, passage sequence and supervision for the entrance.
Product views show possible cabinet and lane arrangements. Readers and terminals are selected separately; final quantities and dimensions follow the confirmed order drawing.
FC24EAB
Parameters describe the listed model configuration. Confirm the selected mechanism, final cabinet and lane dimensions, controller and order drawing. Throughput varies with access checks and passage conditions.
| Structure | AB interlocking access gate |
|---|---|
| Overall product dimensions | 1600 × 1080 × 2420 mm |
| Passage width | 700 mm |
| Cabinet / frame material | Stainless steel and cold-rolled steel |
| Rated power | 380 W |
| Sensors | Infrared array and AI camera |
| Operating temperature | −20°C to 70°C |
|---|---|
| Working environment | Indoor |
Plan a controlled indoor checkpoint where the project calls for an AB passage sequence. Review user supervision, accessible routes and the required response to an interrupted passage.
Product views show possible cabinet and lane arrangements. Readers and terminals are selected separately; final quantities and dimensions follow the confirmed order drawing.
Choose the reader and access controller for the required credential workflow, then confirm the gate input, signal timing, wiring and controller protocol. Commission the passage sequence, sensor response and emergency behaviour with the actual configuration.
Reader compatibility depends on the selected controller and signals. Credential readers, software and gate hardware are specified separately.
Provide the entrance width, lane count, user requirements, floor construction, cable routes and service clearance. Obtain the approved model and configuration drawing before preparing fixing holes or wiring. Check the separate accessible route and the project’s emergency requirements.
The product view is not a drilling template or a certified site plan. A matching operating manual and installation drawing must be requested for the supplied configuration.
Manuals and integration support for FC24EAB.
Documents for FC24EAB →Request the manual, dimension drawing and integration reference for your FC24EAB configuration.
Request documents for FC24EABStart with the passage workflow, available space and users. Swing gates use swinging barrier leaves; flap gates retract their barriers; tripod turnstiles use a three-arm mechanism; full-height turnstiles use a rotating barrier; AB gates coordinate two sequential stages. Review the lane layout, supervision, accessible route and emergency behaviour with the project team.
For compatible swing and flap systems, a single-mechanism cabinet controls one side of a lane. Two matching outer cabinets form one lane; adding a compatible double-mechanism cabinet between them can form two lanes. Single and double mechanisms describe cabinet configurations, not complete lane quantities. Tripod, full-height and AB gates use their own arrangements. Confirm the final quantities and footprint on the project drawing.
No. Cabinet size, clear passage width and the complete installed footprint describe different measurements. Confirm the cabinet arrangement, arm or barrier movement, accessible route, fixing pattern and service clearance using the approved project drawing.
The pictures illustrate possible access configurations. Confirm the gate, readers, terminals, controllers, software and quantities in the order. Match the credential output, gate input, control protocol and power arrangement before integration.
