Feocey Smart Locker Local Authentication Management System addresses industry-wide pain points of traditional cloud-dependent locker systems amid the diversified popularization of smart storage scenarios, including high network dependence, long response latency, total service outage during network disconnection, and potential security risks in data transmission.
To fully address these industry challenges, Feocey officially launches our all-new complete smart locker local authentication management system solution.Feocey Smart Locker Local Authentication Management System is an industrial-grade access control solution for intelligent lockers, delivering secure and efficient local authentication services for a wide range of locker cabinets.

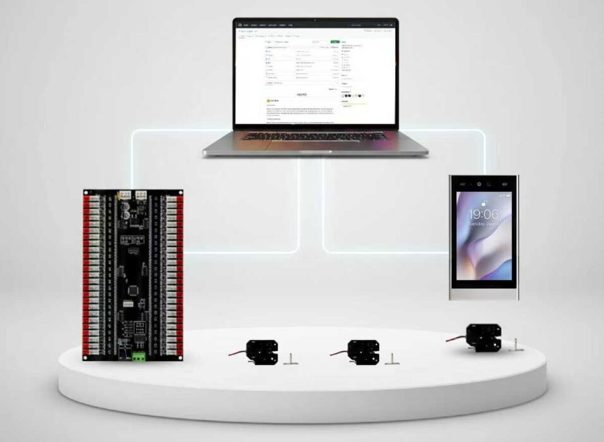

Built on the core architecture of local edge computing + terminal autonomous authentication, paired with our self-developed high-performance main control terminals and lock control hardware, this solution enables full-process authentication, logic judgment, and command execution to be completed entirely locally. It delivers a highly stable, secure, and scalable smart storage solution for small and medium-sized scenarios including express logistics, campuses, offices, industrial facilities, and communities.

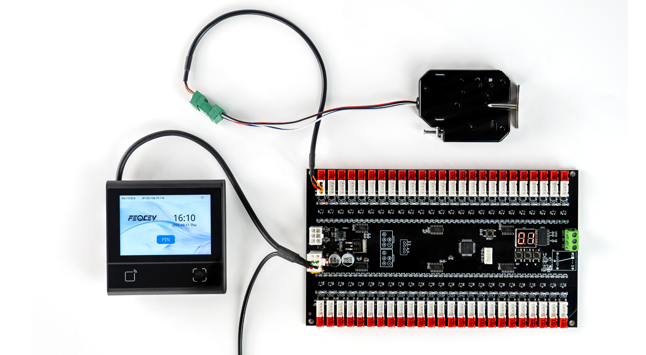

Core Hardware Components of the Solution | Industrial-Grade Quality, Out-of-the-Box Deployment
This solution is a fully integrated hardware and software delivery package. All core hardware is self-developed and fully compatible by Feocey, with no additional debugging or adaptation required from customers. It supports out-of-the-box deployment, greatly reducing project implementation costs.
1. Core Authentication Main Control Terminal (2 options for adaptation)
FC6820 3.33-inch Multi-Function Touch Control Main Terminal
Designed for small and medium-sized locker scenarios, this terminal integrates a 3.33-inch IPS industrial-grade capacitive touch screen, a high-performance 2D barcode scanning engine, and a stable Linux operating system. It serves as both the human-machine interaction entry of the entire system, and the core gateway for local computing and communication.
- Professional-grade scanning performance: Supports mainstream barcode formats including QR Code and PDF417, with an average recognition speed as low as 100ms. It is fully compatible with mobile screen codes and printed paper codes, and delivers stable recognition in both low-light and high-glare environments.
- Powerful local computing capability: Supports offline storage of over 100,000 user permission entries. It completes the full workflow of QR code verification, locker number matching, and command issuance locally, with response latency < 300ms.
- Rich communication interfaces: Supports dual-link communication via TCP/IP wired network and 2.4G WiFi, and connects to lock control boards downstream via RS485 bus, adapting to various on-site deployment environments.
FCV5003 7-inch Facial Recognition Main Control Terminal
Built for high-security and high-frequency usage scenarios, this terminal is equipped with a 7-inch IPS HD touch screen, an AI dual-core chip, an integrated 3D structured light facial recognition module, and under-screen card swiping function, providing financial-grade secure local facial authentication for the system.
- Ultra-fast and accurate facial recognition: Local face comparison speed < 0.2s, with recognition accuracy > 99.7%. It supports mask-wearing recognition and low-light liveness detection, preventing spoofing attacks via photos or videos.
- Large-capacity local face database: Supports offline storage of over 50,000 face templates, completing the full workflow of facial recognition, permission verification, and unlocking even in offline environments.
- Multi-modal authentication integration: Supports four mainstream authentication methods: facial recognition, IC card swiping, password, and QR code. It supports free combination of two-factor authentication locally to meet the needs of different security levels.
[Insert product photos of the main control terminals here: front view and installation effect of FC6820 and FCV5003, highlighting the industrial-grade design and texture]

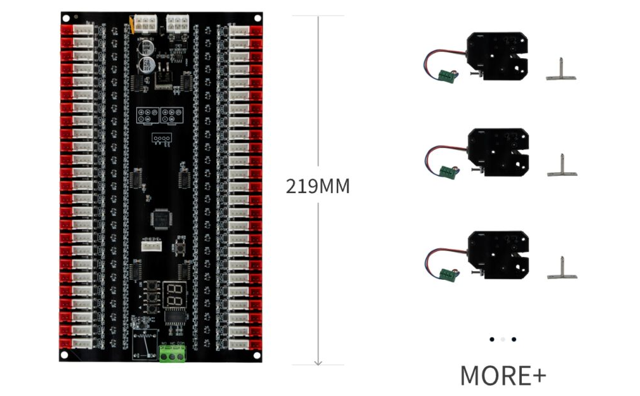

2. ECB39 Lock Control Expansion Board for Feocey Smart Locker Local Authentication Management System
As the execution core of the entire system, it connects to the main control terminal via RS485 bus cascading. It is responsible for electric lock driving and real-time cabinet door status collection, supports flexible address code configuration, and adapts to locker cabinets of different specifications.
- Ultra-strong cascading expansion capability: This Feocey Smart Locker Local Authentication Management System supports cascading control of up to 68 locker doors., perfectly adapting to all cabinet sizes from small office file cabinets to large courier station parcel lockers.
- Dual-channel status feedback: Real-time collection of cabinet door open/close status and lock in-place signal, enabling local abnormal status alarm and eliminating the risks of false locking and missed locking.
- Industrial-grade anti-interference design: Wide voltage adaptation, surge protection, and anti-static protection, adapting to complex electromagnetic environments such as factories, courier stations, and outdoor scenarios.
3. Power Supply for Smart Locker Local Authentication System
The solution comes standard with a 12V3A industrial-grade regulated power supply module, which provides stable power supply for the main control terminal and all lock sets. It supports DC 9V-24V wide voltage input, adapting to various on-site power supply environments. It is also equipped with a complete set of mounting brackets, wiring terminals, and embedded installation accessories, supporting embedded installation on the cabinet without additional custom opening, greatly reducing construction difficulty.
[Insert photos of the lock control board and installation accessories here: details of the lock control board, wiring method, and installation accessories for engineering customers to view construction adaptability]
Core Functional Highlights | Redefining the Smart Locker User Experience
1. 100% Offline Availability, Complete Freedom from Network Dependence
This is the core differentiated advantage of our solution: the full workflow of user authentication, permission verification, logic judgment, and unlocking command issuance can be completed entirely on the local terminal, without real-time connection to the cloud server. Even during network interruption or cloud server maintenance, the device can still provide normal storage and pickup services, completely eliminating the industry pain point of “total service outage upon network disconnection” in traditional cloud-based solutions.
2. Multi-Modal Local Authentication with Financial-Grade Security Protection
The solution supports four mainstream authentication methods: QR code, facial recognition, card verification, and password verification. All authentication data is encrypted and stored locally on the terminal, no need to upload to the cloud, eliminating the risk of data leakage. It also supports local customization of permission validity period, usage times, and locker binding rules. Administrators can complete permission configuration and data management directly on the local terminal without logging into the cloud backend, enabling more convenient operation and more secure data.
3. Millisecond-Level Ultra-Fast Response for Superior User Experience
Benefiting from the local closed-loop computing logic, after the user scans the QR code/face, the terminal completes verification and issues the unlocking command locally. The full-process response speed can reach as fast as 300ms, far outperforming the 1-3 second response latency of traditional cloud-based solutions. It greatly improves the user experience and reduces queuing waiting time during peak hours.
4. Full-Link Real-Time Status Monitoring & Local Anomaly Alarm
The system can collect the open/close status of each locker door, lock working status, and terminal operating status in real time, with all status data synchronized locally. In case of unclosed door, abnormal lock, illegal prying, the terminal will immediately trigger an audible and visual alarm locally, and can push alarm information to the administrator via the optional cloud link, realizing full-scenario security management and control.
5. Highly Customizable Local UI Interaction
Administrators can directly customize the screen display content on the local terminal, including brand logo, background image, operation prompt text, welcome message, etc., without configuration issued via the cloud. It can quickly adapt to the personalized display needs of different brands and scenarios, creating an exclusive brand image.
Industrial-Grade Technical Specifications | Stable Operation in Complex Environments
表格
| Category | Key Parameters | Application Notes |
|---|---|---|
| Main Control System | Industrial-Grade Linux Operating System | Anti-crash and anti-freeze design, stable 24/7 operation |
| Screen Specification | 3.33-inch / 7-inch IPS Capacitive Touch Screen | 320*480 HD resolution, clear visibility in both high-glare and low-light environments |
| Communication Capability | Uplink: TCP/IP, 2.4G WiFi; Downlink: RS485 Bus | Dual-link uplink backup, high anti-interference downlink communication, maximum transmission distance of 1200 meters |
| Power Supply Specification | DC 9V-24V Wide Voltage Input (12V Typical) | Adapts to various on-site power supply environments, with surge and anti-static protection |
| Operating Power Consumption | Rated 6W (excluding lock power consumption) | Low power consumption design for stable and energy-saving long-term operation |
| Environmental Adaptability | Operating Temperature: -20℃ to 60℃ | Supports semi-outdoor installation, adapts to all-season use in both northern and southern regions |
| Expansion Capability | Up to 68 locker doors supported per single system | One solution covers all needs from small file cabinets to large parcel lockers |
Full Scenario Adaptation | One Solution for All Your Smart Storage Needs
With the advantages of high stability, high scalability, and flexible deployment, this solution can perfectly adapt to various smart storage scenarios:
- Express & Logistics Scenarios: Courier station parcel lockers, community self-pickup lockers, township logistics service points. Normal pickup is not affected by network disconnection, completely solving the pain point of unstable network in remote areas.
- Campus & Education Scenarios: Student schoolbag lockers, library storage lockers, training building tool cabinets. Batch configuration of local permissions, usable without networking, adapting to campus intranet environments.
- Enterprise & Office Scenarios: Office file cabinets, employee storage lockers, meeting room document cabinets. Secure and convenient facial recognition, local permission management to protect enterprise trade secrets.
- Industrial & Manufacturing Scenarios: Factory tool cabinets, labor protection equipment lockers, workshop material cabinets. Wide temperature and voltage adaptation to industrial environments, offline availability to eliminate production interruptions.

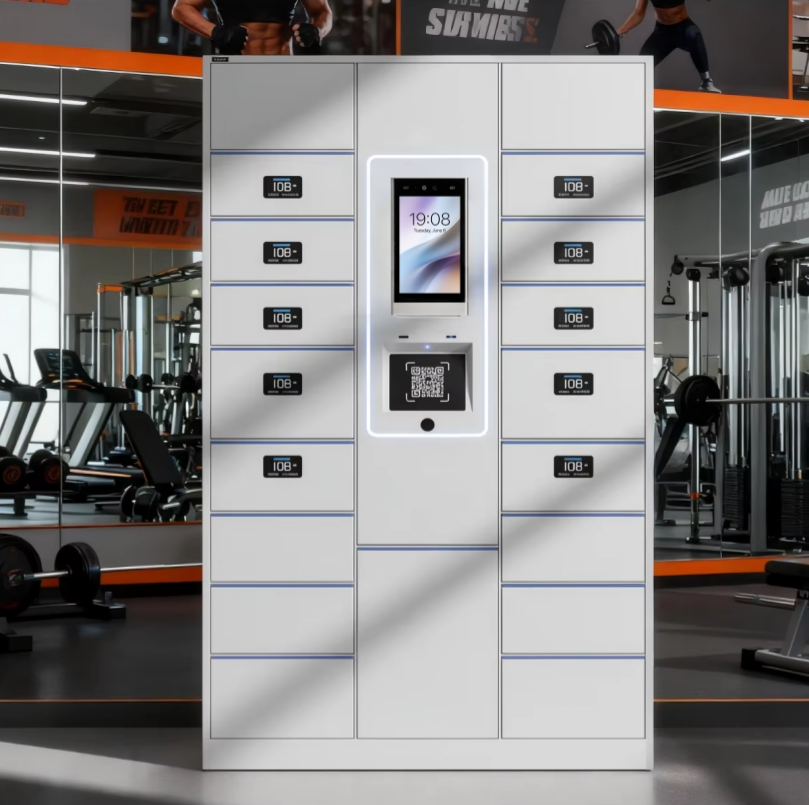

- Commercial Service Scenarios: Supermarket self-service storage lockers, gym storage lockers, swimming pool changing room lockers. Multi-modal authentication adapts to different customer groups, ensuring stable 24/7 operation.
About Feocey
Feocey specializes in the R&D and manufacturing of hardware and software for smart access control, facial recognition, and smart storage solutions. We have a complete self-developed product line and industry solution capabilities, providing global customers with highly stable, cost-effective smart IoT products and customized services.
[Insert brand introduction/enterprise qualification pictures here: enterprise factory, R&D team, qualification certification to enhance brand trust]
Contact Us for a Customized Solution
If you are interested in our all-new smart locker local authentication management system, and want to obtain the detailed product manual, technical protocol, test prototype, and exclusive implementation solution, please contact us via:
- WhatsApp: +86 18962100915
We will assign you an exclusive product manager and tech】、nical support team to provide one-to-one technical services and solution customization, helping you launch your project quickly and smoothly.
