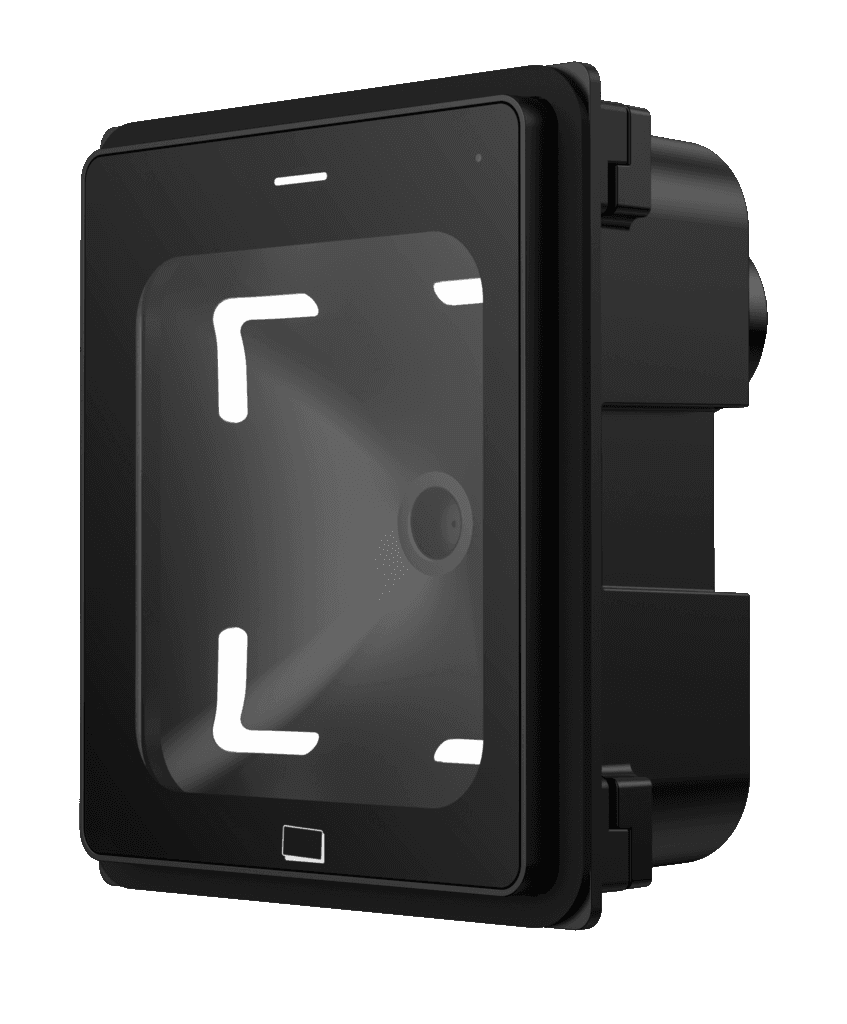

FC8134 is an outdoor access control qr code/rfid reader. It supports two verification methods: QR codes and cards, and achieves an IP67 rating for water and dust resistance. This device features Ethernet output functionality and also offers optional 485/232/Wiegand and TTL interfaces, making it suitable for a variety of scenarios. FC8134 is not afraid of outdoor environments and is an ideal choice whether for building installation or equipment embedded integration.
High Quality
FC8134
original design

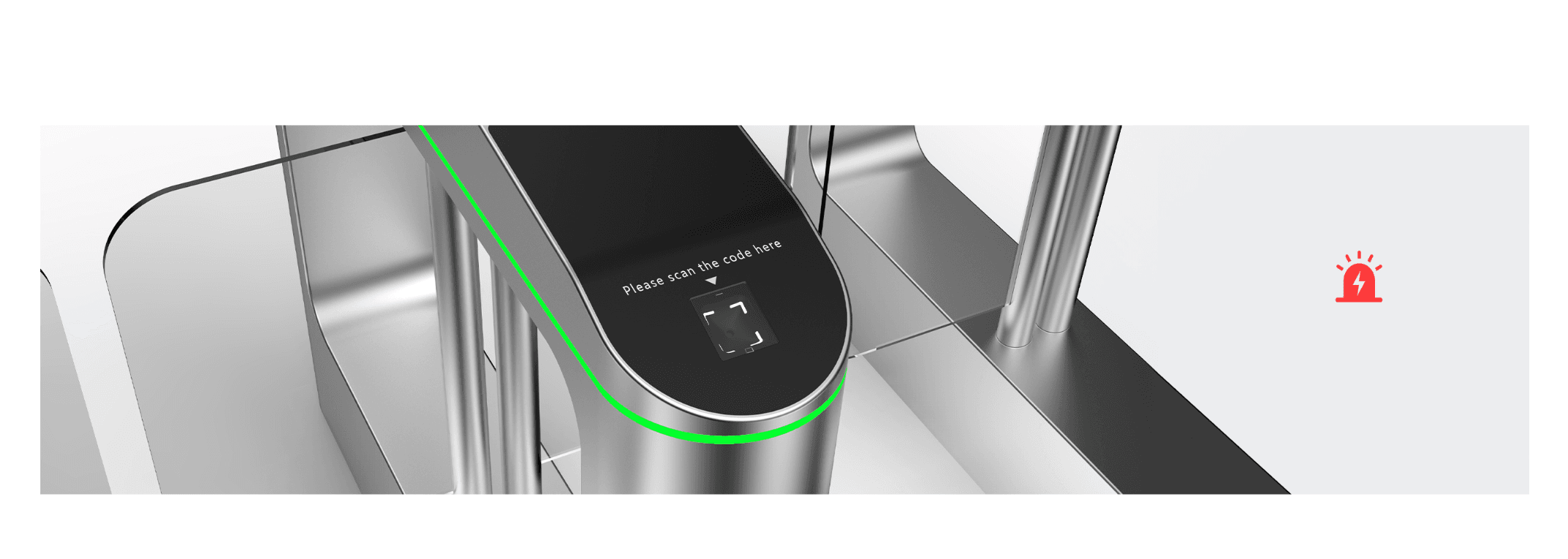

Alarm input
Stability Assurance
FC8135
Specifications
| General parameters | |
| Supported interfaces | RS232, RS485, TTL, Wiegand |
| Instruction method | Red, green and white indicator lightsbuzzer |
| Image Sensor | 300,000-pixel CMOS sensor |
| Maximum resolution | 640*480 |
| Installation | Flush Mount |
| Product size | 88.30mm*88.30mm*28.35mm |
| Reading window size | 56mm*51mm |
| QR code reading parameters | |
| Identification code system | QR, PDF417, CODE39, CODE93, CODE128, ISBN10, ITF, EAN13, DATABAR, aztec, etc. |
| Decoding support | Mobile screen\paper |
| Reading Depth of Field | 0mm~62.4mm(QRCODE 15mil) |
| Reading accuracy | ≥8mil |
| Read speed | 100ms each time (average), supports continuous reading |
| Reading direction | Tilt ±56.3° Rotation ±360° Yaw ±55.7° (15milQR) |
| Field of view | Horizontal 72.1° Vertical 56.6° Field of view 84.3° (15milQR) |
| RFID card reading parameters | |
| Identification card type | ISO 14443A protocol card, ISO 14443B protocol card, ID card (only reads physical card number) |
| Operation card mode | Read UID/Read and write M1 card sectors |
| RF operating frequency | 13.56MHz |
| Reading effective distance | ＜5cm |
| Electrical parameters | |
| Operating voltage | DC 5V-24V |
| Working current | 280mA (typical 5V power supply) |
| Rated power consumption | 1400mW(Typical 5V power supply) |
| Working environment parameters | |
| Electrostatic protection | ±8kV (air discharge), ±4kV (contact discharge) |
| Operating temperature | -20°C-65°C |
| Storage temperature | -40°C-80°C |
| Relative humidity | 5%-95% (no condensation)(Ambient temperature 30°C) |
| Ambient illumination | 0-100000Lux (not in direct sunlight) |
| Waterproof Grade | IP67 |
